Product Details:
|
| Name: | Rotary Automatic Horizontal Flow Cookies Packing Machine With Pulling Film Downwards | Application: | Food, Waffles, Cookie, Cracker,biscuit, Bread |
|---|---|---|---|
| Driven Type: | Electric | Control System: | PLC |
| Function: | Conveying, Forming,Sealing,Cutting | Packaging Material: | Film |
| Film Material: | OPP, CPP, PE, PET | Film Width: | <240mm |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| Automatic Grade: | Automatic | ||
| High Light: | 250mm Film Horizontal Flow Packing Machine,230 bags/min Horizontal Flow Packing Machine,Rotary Automatic cookies packing machine |
||
Features:
1.Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function adjusting and technical upgrade.
Technical Parameters And Specifications
| Model | 250B/D | 350B/D | 450D | 600D |
| Film Width | Max.250 mm | Max.350 mm | Max.450 mm | Max.600 mm |
| Bag Length | 65~330 mm | 65~330 mm | 120~450 mm | 130~600 mm |
| Bag Width | 30~110 mm | 50~160 mm | 60~210 mm | 130~600 mm |
| Product Height | MAX. 40/55 mm | MAX. 45/80 mm | MAX. 110 mm | MAX. 110 mm |
| Packing Speed | 40~230 bags/min | 40~230 bags/min | 30~180 bags/min | 20~150 bags/min |
| Machine Power | 220V, 50/60Hz, 2.4KW | |||
| Machine Size | 3770*670*1450 mm | 4020*745*1450 mm | 3990*900*1468 mm | 3990*1000*1468 mm |
| Machine Weight | 400KG | 500KG | 550KG | 600KG |

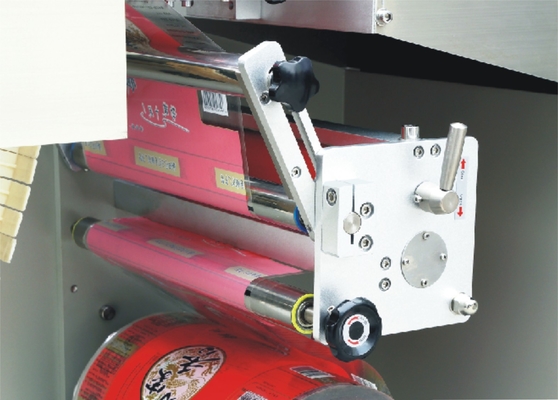

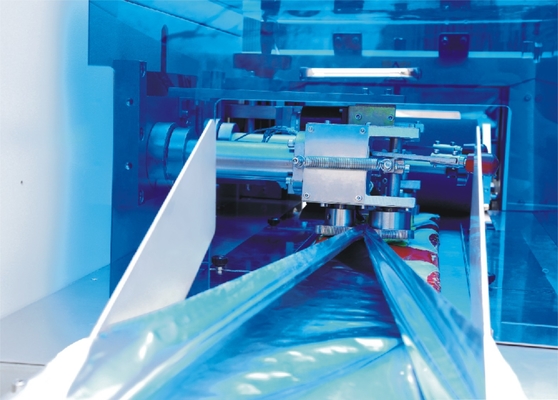

Machine Details:

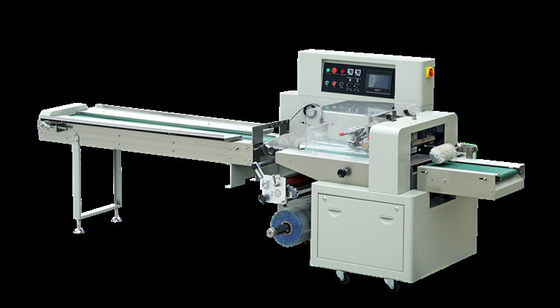

Automatic Horizontal Flow Rotary Pulling Film Upward Pack Machine
bag type
Automatic Horizontal Flow Rotary Pulling Film Upward Pack Machine
optional device
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
