Product Details:
|
| Name: | Automatic Carton Box Folding Machine For Special Shape | Automatic Grade: | Automatic |
|---|---|---|---|
| Forming Species: | Box Molding | Forming Function: | Forming |
| Driven Type: | Electric | Warranty: | 12 Months |
| After-sale Service: | Online Support | ||
| High Light: | 250g/m2 Automatic Carton Packing Machine,400g/m2 Automatic Carton Packing Machine,Corrugated box folding and gluing machine |
||
Application:Mainly suitable for B/E/F corrugated paper and 250-400g whiteboard paper and other packaging materials of paper boxes. Widely used in such, Digital products, cosmetics, knitted products, baked goods, toys, fruits, daily necessities, pharmaceuticals, and other industries of medium and high-grade carton packaging.
Features:
1. Imported glue spraying system,with automatic glue spraying compensation function;
2. Add the folding knives device, can do various boxes
3. cardboard adopt automatic feeding with bottom suction, continuous feeding, forming, conveying and stacking at one time;
4. Adopt PLC controller, photoelectric tracking system, gas source detection system, human-Machine interface, automate the whole process of box forming
5. Fiber positioning for folding and gluing to reduce gluing errors. Servo pushes the cardboard with glue on front and back to reduce photoelectric eyes error, which can make glue more accurate.
6. Infrared safety protection system to ensure the safety of personnel operation;
7. Automatic fault diagnosis function;
8. Quick mold change adjustment device;
9. Cage design of machine frame, integral processing, grouping combination;
10. The whole machine occupies a small area and has good stability.

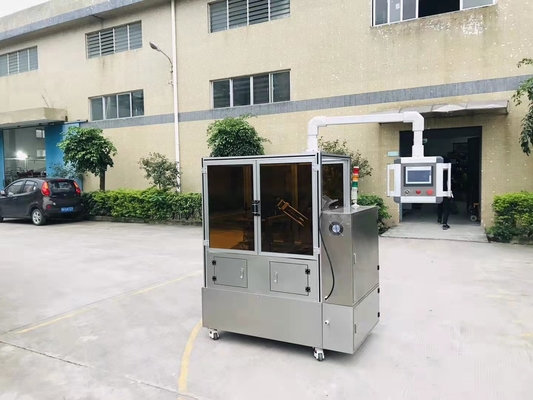

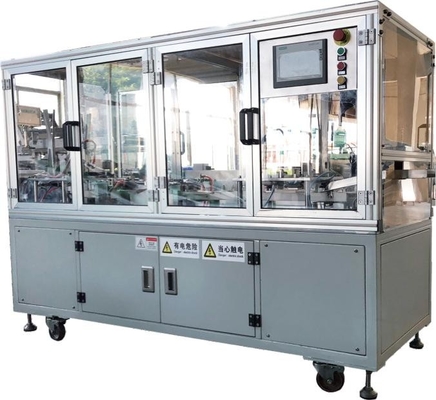

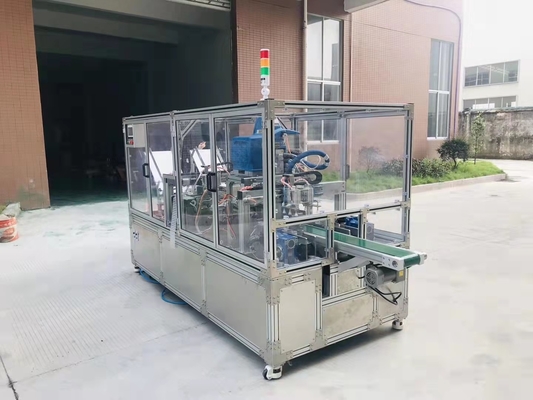

Introduction:This machine is one of our main product. It can automatically take box, push box downward, fold ears, fold page, insert card, form. It is suitable for many sizes of boxes and can adjust freely.
working flow:
Technical parameters
| Model | 10-20FJH |
| Speed | 15-25pieces/min |
| Ajustable Size Range | Customized |
| Box Material Specification | 250-400g/m² |
| Power | 220V, 50HZ/60HZ, 1.2KW |
| Air Pressure | 0.5-0.8Mpa |
| Air Consumption | 20-30L/min |
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
