Product Details:
|
| Name: | Fully Automatic Corrugated Box Making Machine With Bottom Sealing | Application: | Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Food |
|---|---|---|---|
| Type: | Carton Packaging Machinery | Automatic Grade: | Automatic |
| Function: | Carton Opening | Material Type: | Carton |
| Customization: | Available | Warranty: | 12 Months |
| After-sale Service: | Online Support | ||
| High Light: | 0.2KW Automatic Carton Packing Machine,PLC controlled Automatic Carton Packing Machine,Bottom Sealing Corrugated Box Making Machine |
||

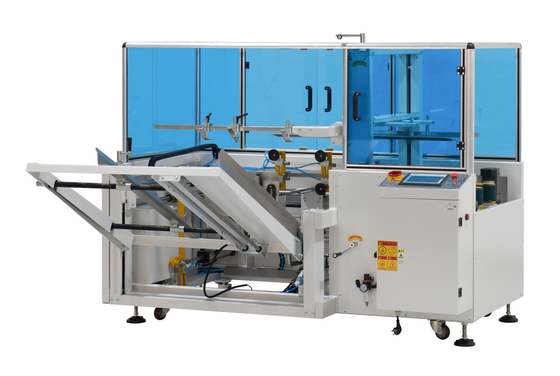

Fully Automatic Corrugated Box Making Machine With Bottom Sealing
Introduction:
It can open vertical cardboard and correct the right-angle automatically. Automatic carton erector machine is a case packer that deals with unpacking ,carton flexing and packing. This machine adopts PLC and touch screen to control. As a result, it is more convenient to operate and manage. Additionally, it can reduce labour input and lower labour intensity. It is the ideal choice of the automation producing lines. It will greatly reduce the cost of packing. Hot melt adhesive can also be utilized in this machine.
Features:
1. OMRON PLC controller with big Touch Screen, good friendly interface and visualized operation.
2. Adopt vertical storage of cardboard and it can add the cardboard at any time, without closing down.
3. Easy to adjust the machine parameters to adapt to a variety sizes of cartons.
4. Unfold folded papery boxboards, close bottoms and seal them by gummed tapes automatically.
5. Imported pneumatic and electric components ensure trouble-free operation for a long time.
6. Automatic alarm and closing down system when faults occur.
7.Cutter safety system to prevent hands from hurting by the cutter.

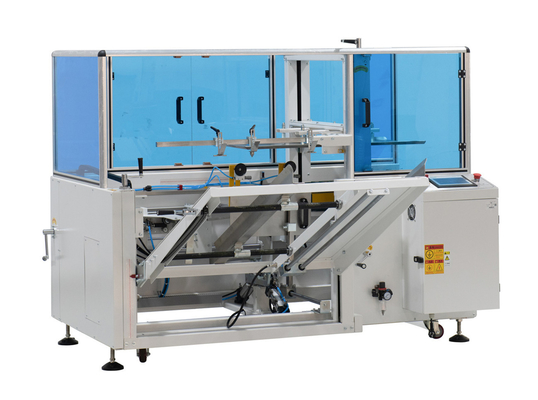

Fully Automatic Corrugated Box Making Machine With Bottom Sealing
Technical Parameters
| Suitable Carton Size | L:200-450mm |
| W:150-400mm | |
| H:120-350mm | |
| Feeding Position of Carton | Left in right out/right in left out(according to production line layout) |
| Tap Width | 4.8-6.0cm |
| Machine Size | L2460*W2080*H1492mm |
| Machine Weight | 400kg |
| Molding Speed | <=8-12 cartons/min |
| Power | 220V, 50/60HZ, 0.2KW |
| Single Machine Efficiency | <=95% |
| Application Gas Source | 6kg/m², 200L/min |
| Environmental Conditions | Hummidity<=98%, temperature:0-40℃ |
| Storage Mechanism | 1500mm long storage capacity(carton thickness depends) and ready to add |
| Uncartoning Mode | Vertical molding |
Fully Automatic Corrugated Box Making Machine With Bottom Sealing
Working Flow
Fully Automatic Corrugated Box Making Machine With Bottom Sealing
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
