Product Details:
|
| Name: | Automatic Tray Tape Box Molding Carton Former Case Erector With Hot Melt Glue Sealer | Application: | Drinks, Dairy Products, Cleaning, Detergent, Cosmetics, Skin Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Hair Care Products |
|---|---|---|---|
| Type: | Carton Packaging Machinery | Automatic Grade: | Automatic |
| Function: | Carton Opening | Material Type: | Carton |
| Customization: | Available | Warranty: | 12 Months |
| After-sale Service: | Online Support | ||
| High Light: | 0.2KW corrugated folder gluer machine,Erector corrugated folder gluer machine,hot melt glue box sealing machine |
||

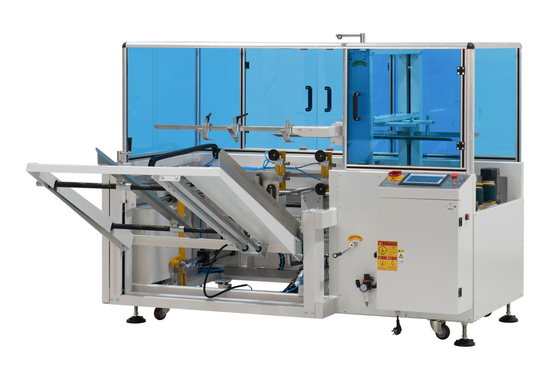

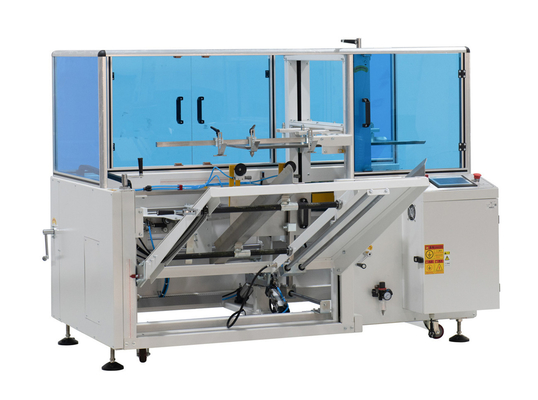

Automatic Tray Tape Box Molding Carton Former Case Erector with Hot Melt glue Sealer
Introduction:
It can open vertical cardboard and correct the right-angle automatically. Automatic carton erector machine is a case packer that deals with unpacking ,carton flexing and packing. This machine adopts PLC and touch screen to control. As a result, it is more convenient to operate and manage. Additionally, it can reduce labour input and lower labour intensity. It is the ideal choice of the automation producing lines. It will greatly reduce the cost of packing. Hot melt adhesive can also be utilized in this machine.
Features:
1. Imported parts, electrical and pneumatic components;
2. Automatically adjust the height and the width for different size of cartons;
3. Advanced pneumatic control system compare with the complicated electrical control system;
4. Side belts driven; top and bottom sealing;
5. Cutter Safety system to prevent hands form stabbed by the cutter;
6. Both steel and stainless steel types;
7. Universal type, fit for all kinds of cartons sealing;
Automatic Tray Tape Box Molding Carton Former Case Erector with Hot Melt glue Sealer
Working Flow
Automatic Tray Tape Box Molding Carton Former Case Erector with Hot Melt glue Sealer
Technical Parameters
| Suitable Carton Size | L:200-450mm |
| W:150-400mm | |
| H:120-350mm | |
| Feeding Position of Carton | Left in right out/right in left out(according to production line layout) |
| Tap Width | 4.8-6.0cm |
| Machine Size | L2460*W2080*H1492mm |
| Machine Weight | 400kg |
| Molding Speed | <=8-12 cartons/min |
| Power | 220V, 50/60HZ, 0.2KW |
| Single Machine Efficiency | <=95% |
| Application Gas Source | 6kg/m², 200L/min |
| Environmental Conditions | Hummidity<=98%, temperature:0-40℃ |
| Storage Mechanism | 1500mm long storage capacity(carton thickness depends) and ready to add |
| Uncartoning Mode | Vertical molding |
Automatic Tray Tape Box Molding Carton Former Case Erector with Hot Melt glue Sealer
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
