Product Details:
|
| Name: | Automatic Hot Glue Box Packing Machine For Food Cosmetics Medicine Daily Product | Application: | Cleaning,Detergent,Cosmetics,Drinks,Skin Care Products,Dairy Products, Hair Care Products Etc. |
|---|---|---|---|
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Customization: | Available | Function: | Form The Box And Put The Product Into The Box, Glue |
| Material Type: | Solid | Packaging Material: | Paper |
| Control System: | PLC | Warranty: | 12 Months |
| After-sales Service: | Online Support | ||
| High Light: | SUS304 automatic carton packing machine,Medicine PLC automatic carton packing machine,SUS304 automatic carton box sealing machine |
||

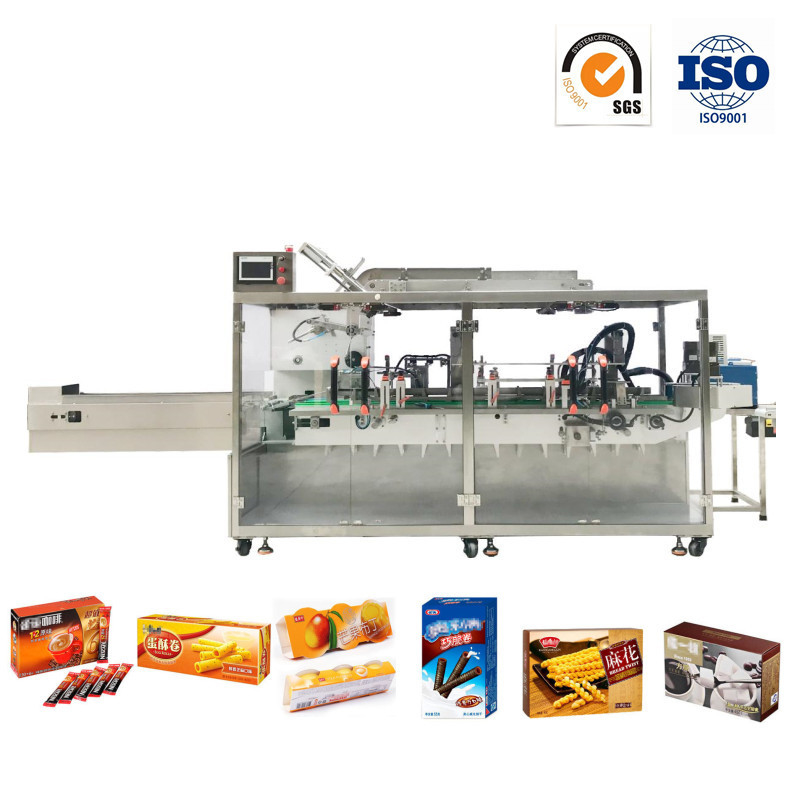

Introduction
1, Integrated with box opening, box loading, box folding, and box sealing, compact and reasonable design, simple operation, and easy maintenance.
2, Can be added before and after the equipment, automatic feeding, automatic under the tray, instructions, print the word code flow number, pick waste, and other functions.
3, It can be quickly adjusted by dial scale within the same equipment to achieve multi-specification use.
4, SUS304 stainless steel is used for the contact part with products.
5, High degree of automation: PLC programmable control system, the human-machine interface shows the speed of carton loading, quantity, automatic alarm for lack of carton, no product not to open the carton, failure reason and other parameters.
6, The transmission and friction parts are strictly following the standard implementation, less wear and tear in the later stage, reducing the replacement of accessories.
7, The hot melt glue machine can be matched according to the customer's requirements, using hot melt glue spraying to seal the box and seal the box.
Technical Parameters
| Model | 30-60PJ/CH |
| Speed | 40-50pieces/min |
| Adjustable Box Size |
L:100-220mm W:100-180mm H:20-70mm |
| Paper Specification | 250-400g/m^2 |
| Power | 1-4.5kw |
| Voltage | 220V,50HZ |
| Air Pressure | 0.5- 0.8Mpa |
| Air Consuption | 15-20L/min |
Flow chart of forming hot glue box
Automatic Hot Glue Box Packing Machine For Food Cosmetics Medicine Daily Product

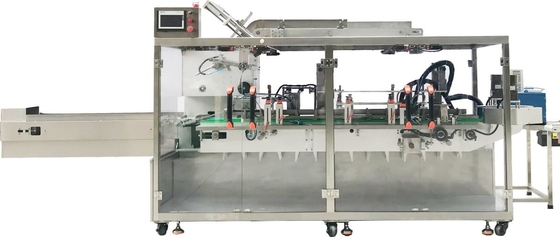

Machine Details
Automatic Hot Glue Box Packing Machine For Food Cosmetics Medicine Daily Product
Suitable for the following Box Type
Automatic Hot Glue Box Packing Machine For Food Cosmetics Medicine Daily Product
Packing Samples
Automatic Hot Glue Box Packing Machine For Food Cosmetics Medicine Daily Product
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
