Product Details:
|
| Name: | One Side Labelling Machine For Flat Surface Box With Self Adhesive Sticker | Application: | Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Dairy Products |
|---|---|---|---|
| Type: | Sticker Labeling Machine | Automatic Grade: | Automatic |
| Applicable Industry: | Packaging | Driven Type: | Electric |
| Classification: | Plane Labeling Machine | Warranty: | 12 Months |
| After-sales Service: | Online Support | ||
| High Light: | Detergent Automatic Box Packing Machine,FlatAutomatic Box Packing Machine,Self Adhesive Sticker box labelling machine |
||

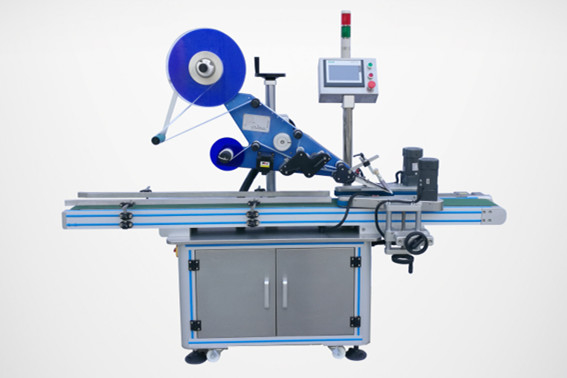

One Side Labelling Machine For Flat Surface Box With Self Adhesive Sticker
Introduction:
The machine can work for all kinds of objects with the plane, flat surfaces such as cards, bags, books, unshaped boxes, cartons, paper, pouches, another packaging bags, etc. Adopts automatically separate stacks of packaging bags or cards and convey a single piece onto the conveyor belt so as to facilitate the labeling machine to stick each sticker onto objects and thus reduce the trifles of manual paging to improve labeling efficiency. Widely used in food, medicine, daily chemical, electronic, metal, plastics, and other industries. It has an optional date coding device, that realizes date coding on stickers.
Features:
1. Meet GMP requirements, can apply to the fields of food, medicine, chemical, comestic etc.
2. Adopting Siemens brand 7 inch colorful touch screen and PLC, easy and good quality PMI.
3. Adopting Siemens brand 750W servo motors for labeling , frequency converter and servo drive, reliable and excellent performance.
4. Adopting Genmany Leuze brand photoelectric sensor.
One Side Labelling Machine For Flat Surface Box With Self Adhesive Sticker
| Suitable label length | 10-250mm | Labeling speed | Max. 500piece/min | |
| Suitalbe label width | 10-100mm | Conveying speed | Max. 50m/min | |
| Suitable product size |
Length | 40-280mm | Power | 1200W |
| Width | 40-200mm | Voltage | 220V/50hz | |
| Height | Max.3mm | Machine weight | 180KG | |
| Suitable label roller size | Outer diameter | Φ280mm | Machine size | L2200*W700*H1400mm |
| Inner diameter | Φ76mm | |||
| Accuracy | ±1-±2mm | |||
One Side Labelling Machine For Flat Surface Box With Self Adhesive Sticker

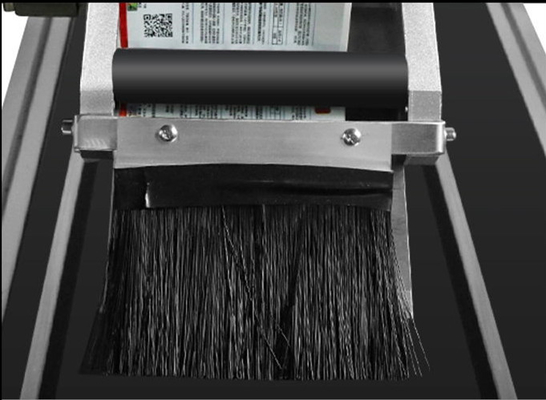

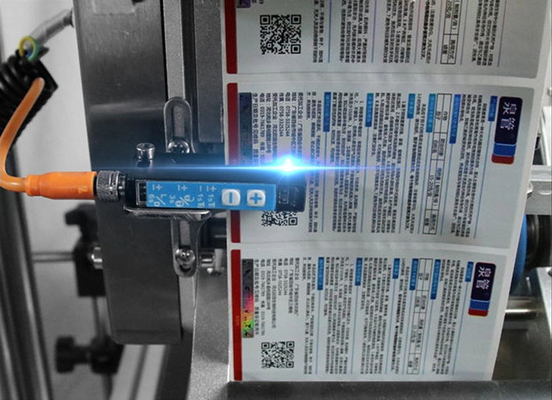

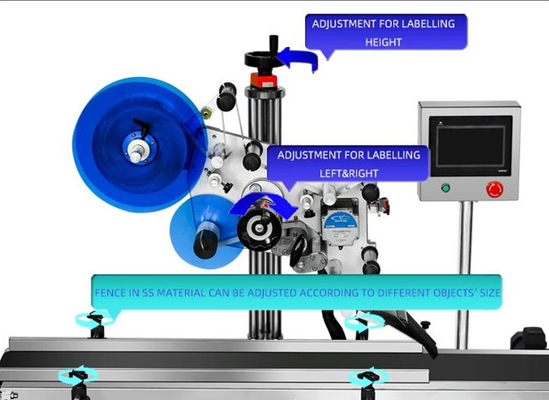

Machine Details Image
One Side Labelling Machine For Flat Surface Box With Self Adhesive Sticker
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
