Product Details:
|
| Name: | Customized Automatic Adhesive Tape Bottom Carton Box Making Machine | Application: | Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical, Food |
|---|---|---|---|
| Type: | Carton Packaging Machinery | Automatic Grade: | Automatic |
| Function: | Carton Opening | Material Type: | Carton |
| Customization: | Available | Warranty: | 12 Months |
| After-sale Service: | Online Support | ||
| High Light: | 200L/min Automatic Box Packing Machine,Adhesive Tape Automatic Box Packing Machine,SGS Vertical carton box making machine |
||

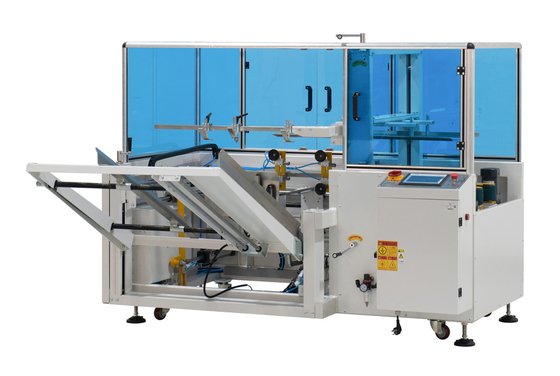

Customized Automatic Tape Bottom Carton Box Making Machine
Introduction:
Case erector can finish the work of carton opening, shaping, folding and sticking adhesive tapes.Equipped with our consistency system, it runs precisely and reliably.This machine provides extremely secure sealing effect, without tape slipping problems.Hot melt glue system is optional.It is widely used with our carton sealer ,carton packer ,weighting system,labeling machine,printing machine ,strapping machine and conveyor system accordingly.
Features:
1. Control panel Graphic and text interface, easy to operate, with emergency stop switch,convenient and safe.
2. Use well-known brand accessories to improve the level of automation system.
3. The machine runs stably and a long service life.
4. Water can be discharged through a filter; Adjustable pressure.
Customized Automatic Tape Bottom Carton Box Making Machine
Technical Parameters
| Suitable Carton Size | L:200-450mm |
| W:150-400mm | |
| H:120-350mm | |
| Feeding Position of Carton | Left in right out/right in left out(according to production line layout) |
| Tap Width | 4.8-6.0cm |
| Machine Size | L2460*W2080*H1492mm |
| Machine Weight | 400kg |
| Molding Speed | <=8-12 cartons/min |
| Power | 220V, 50/60HZ, 0.2KW |
| Single Machine Efficiency | <=95% |
| Application Gas Source | 6kg/m², 200L/min |
| Environmental Conditions | Hummidity<=98%, temperature:0-40℃ |
| Storage Mechanism | 1500mm long storage capacity(carton thickness depends) and ready to add |
| Uncartoning Mode | Vertical molding |
Customized Automatic Tape Bottom Carton Box Making Machine

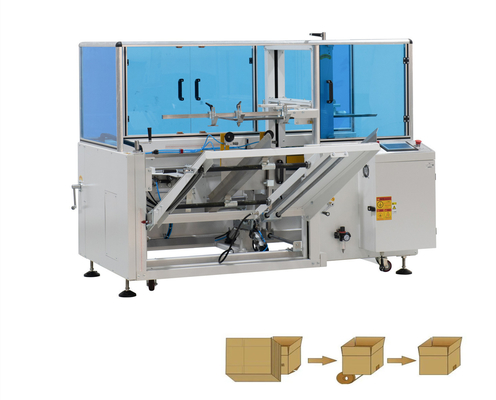

Working Flow
Customized Automatic Tape Bottom Carton Box Making Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
