Product Details:
|
| Name: | Automatic Carton Box Case Bottle POF Film "L" Sealing Shrink Wrap Sealer Machine | Application: | Food, Commodity, Machinery & Hardware, Textile, Toy, Apparel, Gifts&Arts, Medical |
|---|---|---|---|
| Driven Type: | Electric | Automatic Grade: | Automatic |
| Heating Mode: | Quartz Heating Tube | Film Material: | POF |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| High Light: | POF Film shrink wrap sealer machine,POF PVC shrink wrap sealer machine,PLC heat seal shrink wrap machine |
||
Features:
1.Multiple photoelectric protection detection function, more safe and efficient to use.
2.International famous electrical components, green cutting process, so that the seal straight and neat.
3.The advanced Japanese Mitsubishi PLC programmable controller is easy to operate and has the function of safety protection and alarm.
4.Omni-directional safety protection measures (such as sealing and cutting parts with Plexiglas protective cover, etc.), put an end to man-machine injury accidents.
5.Automatic feeding, length can also be automatically adjusted by the combination of electric eye and timer. Equipped with induction motor, automatic waste winding.
6.The sealing line can be easily adjusted in the middle of the product.
7.Suitable for packaging different shapes of products, single or combination packaging.

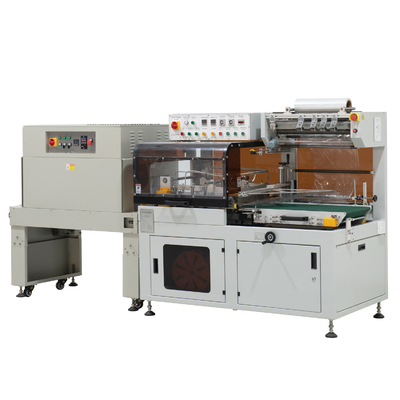

Automatic "L" Type POF PVC Film Tunnel Heating Shrink Wrapper Wrapping Packing Machine

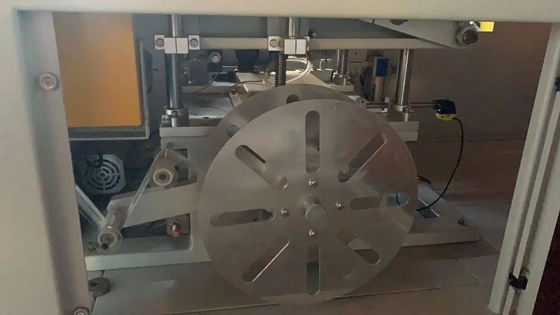

Machine Details:
Automatic "L" Type POF PVC Film Tunnel Heating Shrink Wrapper Wrapping Packing Machine

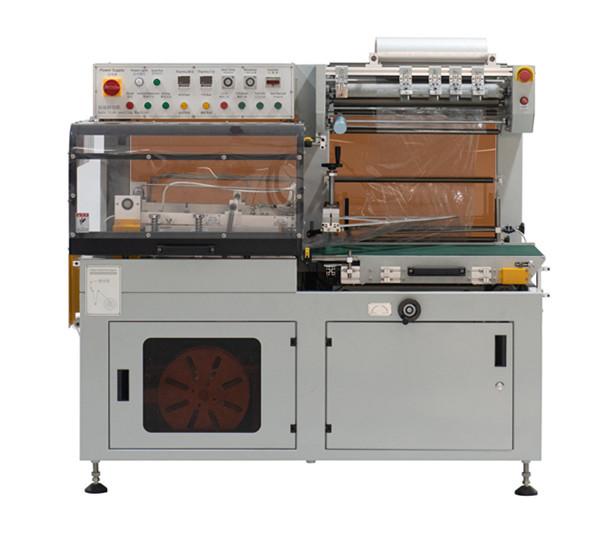

VL380 "L" Sealing Packing Machine
| Machine Size | L1680*W800*H1500mm |
| Power | 3P, 380V/2.5KW |
| Air Pressure | 5.5kg/cm^2 |
| Air Consumption | 3m^3/min |
| Packing Speed | 10-30pieces/min(0-15m) |
| Product Size | L:100-500mm, W:10-380mm, H:0-120mm |
| Film Material | POF |
Film Shrink Tunnel
| Equipment Size | L1370*W750*H1450mm |
| Chamber Size | L1000*W450*H250mm |
| Product Size | L:80-500mm, W:30-380mm, H:5-200mm |
| Power | 3P, 380V/0.88KW |
| Conveying Speed | 15m/min |
Automatic "L" Type POF PVC Film Tunnel Heating Shrink Wrapper Wrapping Packing Machine
Packing Samples:
Automatic "L" Type POF PVC Film Tunnel Heating Shrink Wrapper Wrapping Packing Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
