Product Details:
|
| Name: | Rotary Automatic Horizontal Flow Pack Machine With Pulling Film Upward | Application: | Daily Necessities Etc. |
|---|---|---|---|
| Driven Type: | Electric | Control System: | PLC |
| Function: | Conveying, Forming,Sealing,Cutting | Packaging Material: | Film |
| Film Material: | OPP, CPP, PE, PET | Film Width: | <240mm |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| Automatic Grade: | Automatic | ||
| High Light: | rotary Horizontal Flow Pack Machine,OPP film Horizontal Flow Pack Machine,SGS Automatic form fill packaging machine |
||
The machine widely applied to pack various kinds of regular objects like food, medicine, daily appliances,cosmetic,metals, industrial parts, boxes, trays, toys and etc.
Features:
PLC control with man-machine interface.
Photoelectric automatic tracking system.
Sealed area independent temperature display control,new vertical seal heating.
Driverse packaging,suitable for product packaging of different sizes.
Machine stainless steel material panel.

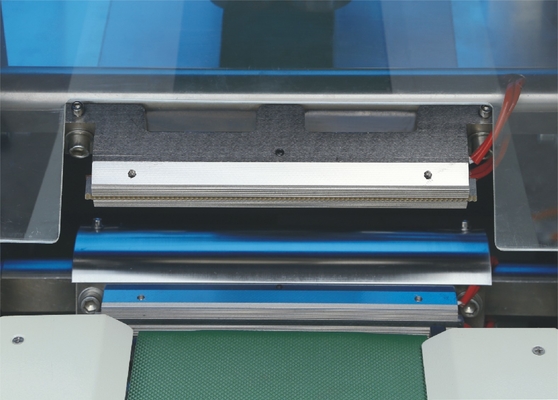

Machine Details:
Technical Parameters And Specifications
| Model | 250XB | 250XD |
| Film Width | Max.240mm | |
| Bag Length | Two Cutting Knives:65-190mm | Two Cutting Knives:90-220mm |
| One Cutting Knives:120-280mm | One Cutting Knives:150-330mm | |
| Bag Width | 30-110mm | |
| Product Height | Max.45mm | Max.60mm |
| Film Roller Diameter | Max.320mm | |
| Packing Speed | 40-230bags/min | |
| Power | 220V,50/60HZ, 2.4KW | |
| Machine Size | L3905*W665*H1375mm | |
| Machine Weight | 500kg | |

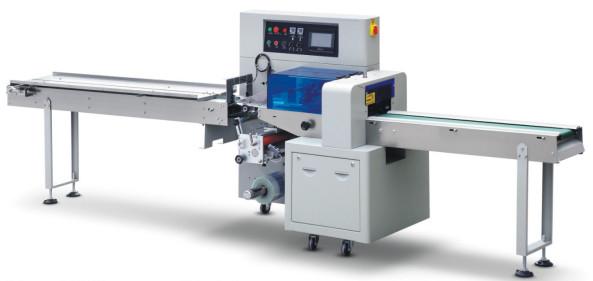

Automatic Horizontal Flow Rotary Pulling Film Upward Pack Machine
bag type
Automatic Horizontal Flow Rotary Pulling Film Upward Pack Machine

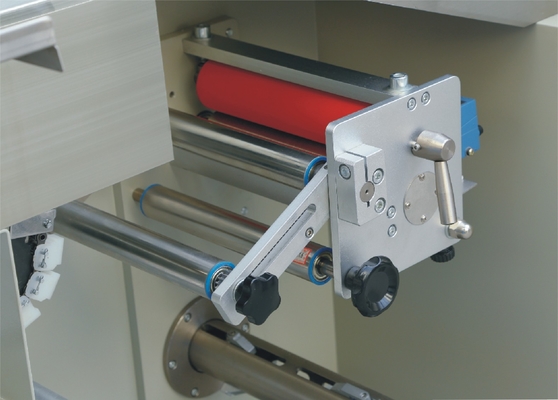

optional device
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
