Product Details:
|
| Name: | Automatic Reciprocating Horizontal Packing Machine With Film Switching Device | Film Material: | OPP, CPP, PE, PET, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE |
|---|---|---|---|
| Application: | Food, Daily Necessities, Hardware, Toys Etc. | Function: | Conveying, Forming,Sealing,Cutting |
| Automatic Grade: | Automatic | Film Roller Position: | The Upper Position Of The Machine |
| Driven Type: | Electric | Control System: | PLC |
| Packaging Material: | Film | Film Width: | <440mm |
| Warranty: | 12 Months | After-sales Service: | Online Support |
JSL serious flow packing machine has good performance at solid product packaging solution such as bread,cake,chocolate,enery bar,tortillas,ice-lolly,vegetable,face mask and so on...
Main Features:
1. Servo motor control;Accurate bag length setting
2. 7inch touch screen, easy operation and multiple language for choice.
3. PID Temperature control, making the seal at low temperature to raise the packing speed and reduce film burning;suitable for various packing films such as aluminium film, paper film, PE film, and composite film.
4. High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.
5. 10 kinds of product packing data memories for easy data setting and record
6.No product No pack
Working Process:
Horizontal flow packing is full automatic packing machine which included product feeding---film forming---product wrapping---bag sealing---bag packing.
Automatic Horizontal Reciprocating Packing Machine With Film Switching Device
Packing samples

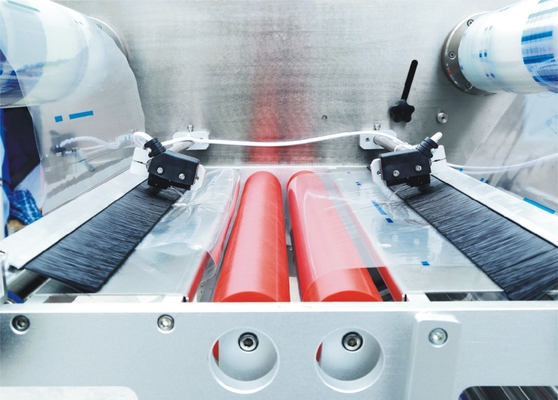

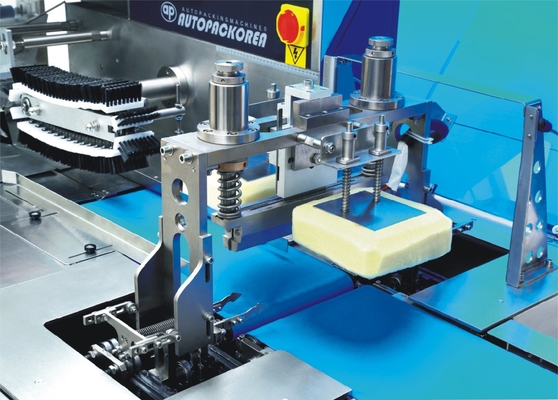

Machine Details:
Technical Parameters And Specifications
| Model | 450# | 600# |
| Film Width | Max.440mm | Max.590mm |
| Bag Length | 150-450mm | 150-450mm |
| Bag Width | 80-200mm | 100-270mm |
| Product Height | Max.110mm | Max.130mm |
| Film Roller Diameter | Max.320mm | Max.320mm |
| Packing Speed | 40-80bags/min | 40-80bags/min |
| Power | 220V,50/60HZ, 3.2KW | 220V,50/60HZ, 3.2KW |
| Machine Size | L3985*W861*H1474mm | L3985*W960*H1474mm |
| Machine Weight | 800kg | 950kg |
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
