Product Details:
|
| Name: | Automatic Horizontal Side Sealing Heat Tunnel Shrink Wrap Equipment | Application: | Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Beverage, Medical, Chemical, Machinery & Hardware |
|---|---|---|---|
| Driven Type: | Electric | Automatic Grade: | Automatic |
| Heating Mode: | Quartz Heating Tube | Film Material: | POF, PVC, PE |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| High Light: | PE Film Shrink Wrap Machine,PVC heat tunnel shrink wrap machine,POF thermal shrink packaging machine |
||
Features:
1. A wide range of products can be packaged
2. An economical packing solution
3. Safety protection and alarm attached
4. The sealing system is capable of performing smooth and firm sealing line.
5. Easy operation and maintenance
6. Use of photo sensors and timers controls the bag length for sealing
7. Excellent perforation system design allows pin changed easily
Horizontal Packaging Line With Side Sealing Machine And Heating Film Shrinking Wrapper
Horizontal Packaging Line With Side Sealing Machine And Heating Film Shrinking Wrapper

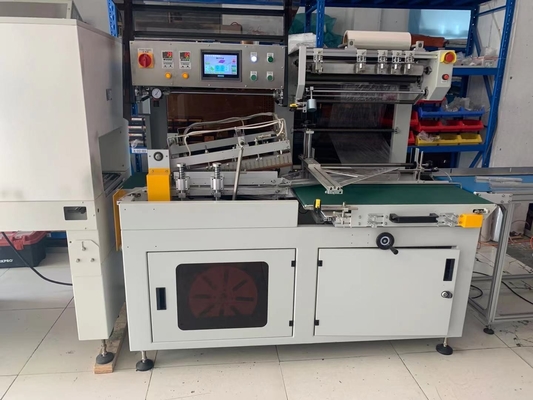

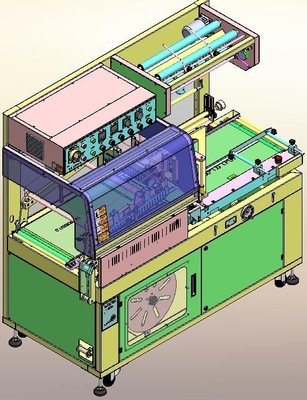

VF380 Side Sealing Packing Machine
| Machine Size | L1720*W920*H1500mm |
| Power | 3P, 380V/2.5KW |
| Air Pressure | 5.5kg/cm^2 |
| Air Consumption | 15m^3/min |
| Packing Speed | 10-40pieces/min(0-30m) |
| Product Size | L:>100mm, W:10-380mm, H:0-180mm |
| Film Material | POF |

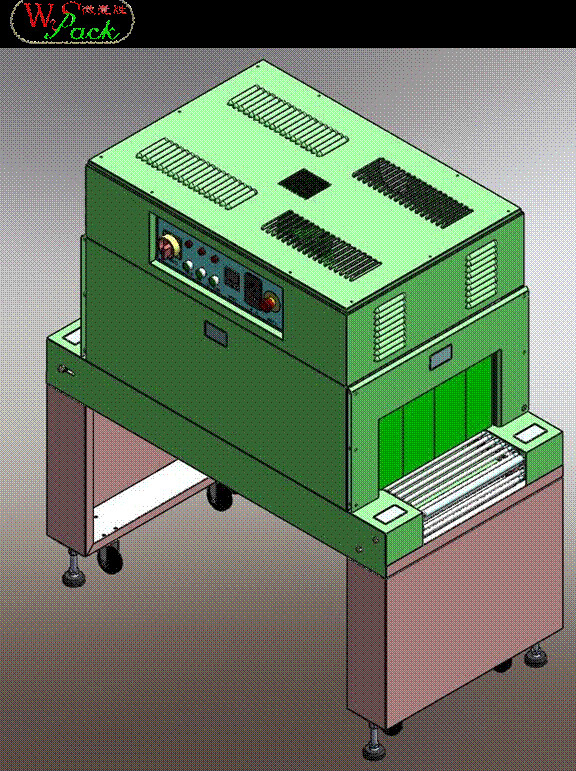

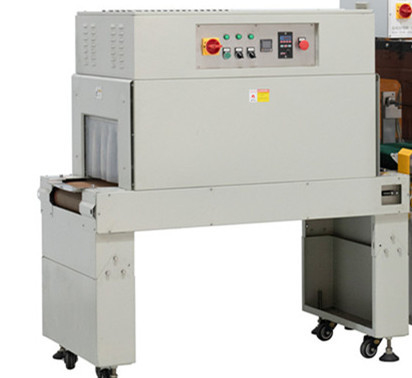

Film Shrink Tunnel
| Equipment Size | L1370*W750*H1450mm |
| Chamber Size | L1000*W450*H250mm |
| Product Size | L:80-500mm, W:30-380mm, H:5-200mm |
| Power | 3P, 380V/0.88KW |
| Conveying Speed | 15m/min |
Horizontal Packaging Line With Side Sealing Machine And Heating Film Shrinking Wrapper
Packing Samples:
Horizontal Packaging Line With Side Sealing Machine And Heating Film Shrinking Wrapper
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
