Product Details:
|
| Name: | Automatic Plastic Side Sealing Shrink Sleeve High Speed Wrapping Machine | Application: | Food, Commodity, Machinery & Hardware, Textile, Toy, Apparel, Gifts&Arts, Medical |
|---|---|---|---|
| Driven Type: | Electric | Automatic Grade: | Automatic |
| Heating Mode: | Quartz Heating Tube | Film Material: | POF |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| High Light: | Automatic Shrink Wrap Machine,plastic POF Shrink Wrap Machine,POF high speed wrapping machine |
||
1. Imported parts are adopted to ensure the machine's stable running with high speed;
2. The cutter adopts vertical system drive to ensure sealing lines straight and tight;
3. With the design of side sealing, the packing length of products is unlimited;
4. The sealing height can be adjusted based on the product height;
5. Widely used in all kinds of products with different sizes and shapes.

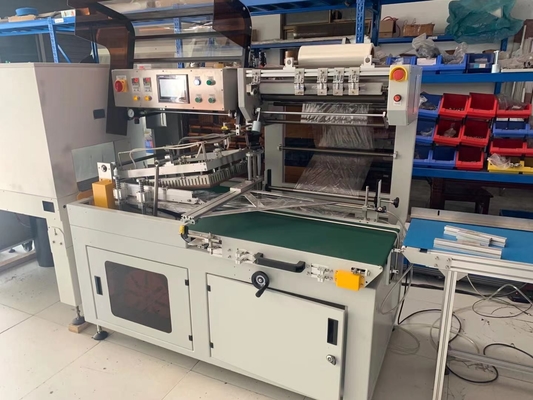

Automatic Plastic Side Sealing Shrink Sleeve High Speed Wrapping Machine
Machine Details:
Automatic Plastic Side Sealing Shrink Sleeve High Speed Wrapping Machine

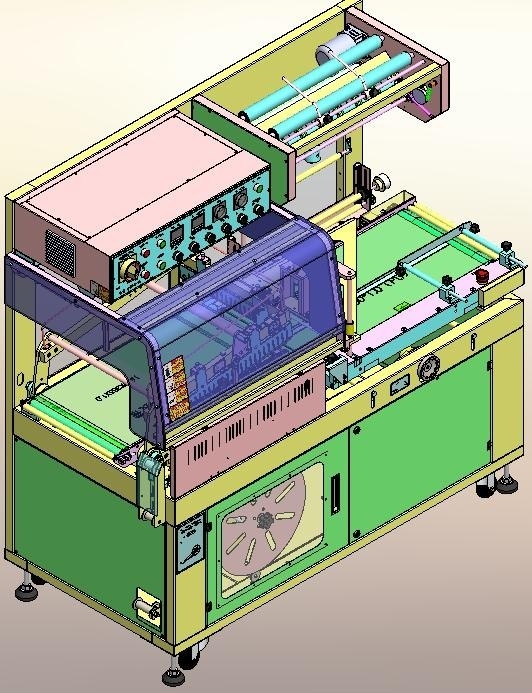

VF380 Side Sealing Packing Machine
| Machine Size | L1720*W920*H1500mm |
| Power | 3P, 380V/2.5KW |
| Air Pressure | 5.5kg/cm^2 |
| Air Consumption | 15m^3/min |
| Packing Speed | 10-40pieces/min(0-30m) |
| Product Size | L:>100mm, W:10-380mm, H:0-180mm |
| Film Material | POF |

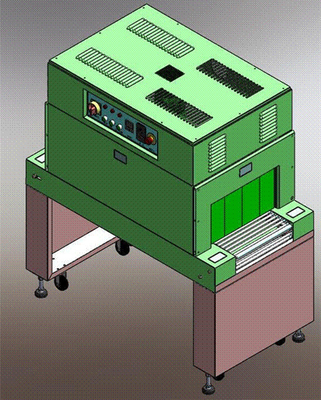

Film Shrink Tunnel
| Equipment Size | L1370*W750*H1450mm |
| Chamber Size | L1000*W450*H250mm |
| Product Size | L:80-500mm, W:30-380mm, H:5-200mm |
| Power | 3P, 380V/0.88KW |
| Conveying Speed | 15m/min |
Automatic Plastic Side Sealing Shrink Sleeve High Speed Wrapping Machine
Packing Samples:
Automatic Plastic Side Sealing Shrink Sleeve High Speed Wrapping Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
