Product Details:
|
| Name: | Automated Small Carton Gift Box Case Bottles Heat Shrink Packaging Machine | Application: | Food, Commodity, Machinery & Hardware, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Medical |
|---|---|---|---|
| Driven Type: | Electric | Automatic Grade: | Automatic |
| Heating Mode: | Quartz Heating Tube | Film Material: | POF |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| High Light: | PVC heat seal shrink wrap machine,PE heat shrink wrap machine,PE POF heat shrink packaging machine |
||
Features:
1.Totally enclosed package.
2.Automatic film feeding, bag making, sealing, waste receiving, leveling, shrinkage and packaging of finished products shall be completed at one time.
3. Thermostat type super-grade aluminum alloy sealing cutter, anti-adhesive, fine sealing line, no coking, no smoking and zero pollution.
4. When cutting into the package, the cutter will automatically bounce back.
5. The size of package can be adjusted arbitrarily with handwheels, without changing the mold.
6. All conveyor belts are covered with PTFE insulation tubes, which are not hot to touch and do not damage the film.
7. The contraction chamber adopts a dual-cycle hot air system, and the temperature can be adjusted arbitrarily.
8. The delivery motor adopts CVT motor, with long service life and low noise.
9. Adopt Omron brand parts such as temperature controller, timer, relay, switch, and sensor.

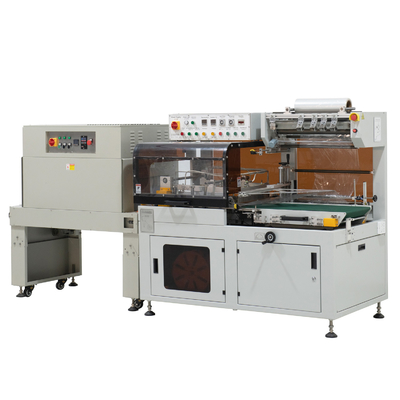

Automated Small Carton Gift Box Case Bottles Heat Shrink Packaging Machine
Automated Small Carton Gift Box Case Bottles Heat Shrink Packaging Machine

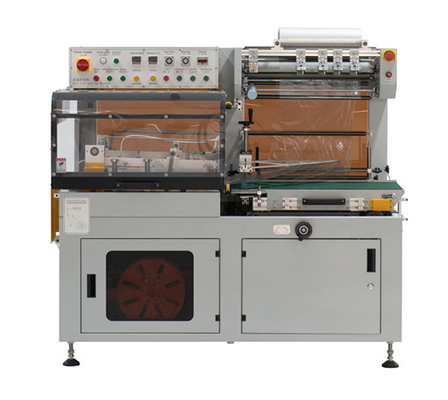

VL380 "L" Sealing Packing Machine
| Machine Size | L1680*W800*H1500mm |
| Power | 3P, 380V/2.5KW |
| Air Pressure | 5.5kg/cm^2 |
| Air Consumption | 3m^3/min |
| Packing Speed | 10-30pieces/min(0-15m) |
| Product Size | L:100-500mm, W:10-380mm, H:0-120mm |
| Film Material | POF |
Film Shrink Tunnel
| Equipment Size | L1370*W750*H1450mm |
| Chamber Size | L1000*W450*H250mm |
| Product Size | L:80-500mm, W:30-380mm, H:5-200mm |
| Power | 3P, 380V/0.88KW |
| Conveying Speed | 15m/min |
Automated Small Carton Gift Box Case Bottles Heat Shrink Packaging Machine
Packing Samples:
Automated Small Carton Gift Box Case Bottles Heat Shrink Packaging Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
