Product Details:
|
| Name: | Automatic Disposable Medical Face Mask Automatic Horizontal Packing Machine | Film Material: | OPP, CPP, PE, PET, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE |
|---|---|---|---|
| Application: | Food, Daily Necessities, Hardware, Toys Etc. | Function: | Conveying, Forming,Sealing,Cutting |
| Automatic Grade: | Automatic | Film Roller Position: | The Lower Part Of The Machine |
| Driven Type: | Electric | Control System: | PLC |
| Packaging Material: | Film | Film Width: | <340mm |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| High Light: | SGS Automatic Face Mask Packing Machine,2.8KW Face Mask Packing Machine,PLC controller horizontal packing machine |
||
Machine Introduction
1. Compact structure, stable performance and simple operation.
2. Controlled by three servo motors, the bag length is set and cut immediately, no need to run one step more,saving time and film.
3. Fault self-diagnosis function, clear fault display.
4. High-sensitivity photoelectric eye tracking, makes the sealing and cutting position more accurate.
5. Temperature is controled by independent PID,better suitable for various materials.
6. Positioning stop function, no stick film to the knife and no waste film.
7. Simple rotation system, more reliable work and more convenient maintenance.
8. All controls are realized by software, which is convenient for function adjustment and technology upgrade, and never lags behind.
Technical Parameters And Specifications
| Model | 1000-350XSF |
| Film Width | Max.340mm |
| Bag Length | Sense the product length automatically |
| Bag Width | 50-160mm |
| Product Height | Max.45-65mm |
| Film Roller Diameter | Max.320mm |
| Packing Speed | 10-25m/min |
| Power | 220V,50/60HZ, 2.8KW |
| Machine Size | L3527*W765*H1375mm |
| Machine Weight | 550kg |
Machine Details:

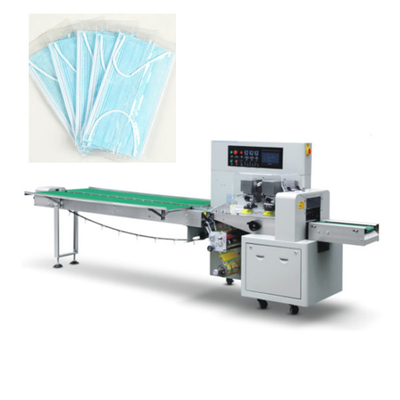

Automatic Disposable Medical Face Mask Automatic Horizontal Packing Machine
optional devices
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
