Product Details:
|
| Name: | Automatic Disposable Medical Face Mask Horizontal Pouch Pack Machine | Driven Type: | Electric |
|---|---|---|---|
| Control System: | PLC | Function: | Conveying, Forming,Sealing,Cutting |
| Packaging Material: | Film | Film Material: | OPP, CPP, PE, PET |
| Film Width: | <340mm | Warranty: | 12 Months |
| Application: | Face Mask, Daily Necessities Etc | After-sales Service: | Online Support |
| Automatic Grade: | Automatic | ||
| High Light: | Medical horizontal pouch machine,Face Mask horizontal pouch machine,FFP3 mask auto box packing machine |
||
Suitable for all kinds of face mask packaging, such as N95, KN95, KN90, FFP1, FFP2, FFP3, KF94 mask, etc. It could pack single piece or many pieces in one bag. The packing speed could reach 40-200 bags/min.
Features
*Three servo motors driven;

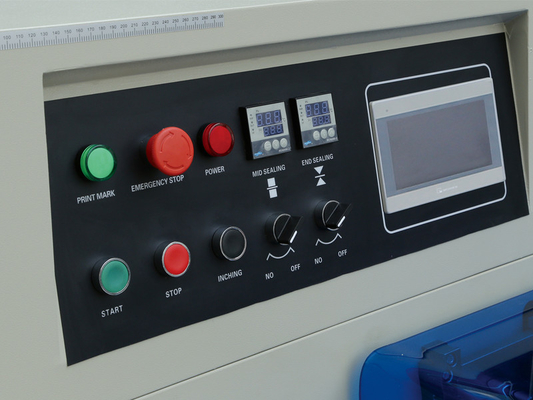

*Human machine interface, PLC program controlled;
* Photo cell sensor, auto tracking for cutting position;
* Film holder with auto centering device
* Security protactive measures reach EU CE certificate
* Cantilevered touch screen
* Adjustable bag former, alarm device for emergency stop, misplaced item stop device

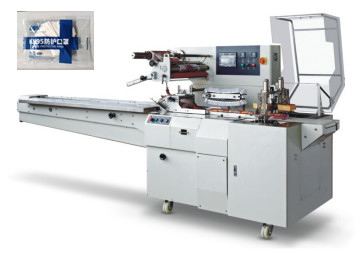

Automatic Disposable Medical Face Mask Horizontal Pouch Pack Machine
Details Image:

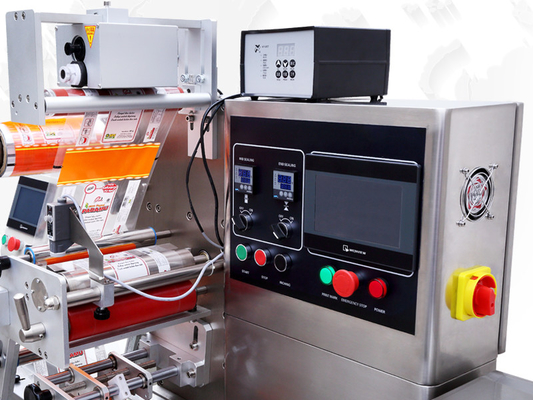

Automatic Disposable Medical Face Mask Horizontal Pouch Pack Machine
Technical Parameters
| Model | 350X | ||
| Film Width | Max.340mm | ||
| Bag Length | 65-190mm or 120-280mm | ||
| Bag Width | 50-160mm | ||
| Product Height | Max.45mm-65mm | ||
| Film Roller Diameter | Max.320mm | ||
| Packing Speed | 40-200bags/min | ||
| Power | 220V,50/60HZ,2.8KW | ||
| Machine Size | L4020*W720*H1320mm | ||
| Machine Weight | 550KG |
optional devices
Automatic Disposable Medical Face Mask Horizontal Pouch Pack Machine
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
