Product Details:
|
| Name: | Automatic Face Mask Packing Machine With Bag Length Sensor | Machine Material: | 304# Stainless Steel |
|---|---|---|---|
| Driven Type: | Electric | Control System: | PLC |
| Function: | Conveying, Forming,Sealing,Cutting | Packaging Material: | Film |
| Film Material: | OPP, CPP, PE, PET | Film Width: | <340mm |
| Warranty: | 12 Months | Application: | Face Mask, Daily Necessities Etc |
| After-sales Service: | Online Support | Automatic Grade: | Automatic |
| High Light: | surgical KN95 Face Mask Packing Machine,FFP1 Face Mask Packing Machine,sus304 automatic carton taping machine |
||
Suitable for all kinds of face mask packaging, such as N95, KN95, KN90, FFP1, FFP2, FFP3, KF94 mask, etc. It could pack single piece or many pieces in one bag. The packing speed could reach 80-120 bags/min.
Features
1. The core control and drive center includes servo motors, PLC and big colorful touch screen. These improve the machine accuracy, speed adjust range, reliability and intelligence level greatly.
2. Mask conveying, film pulling, horizontal sealing and vertical sealing are achieved by servo motors, simplify the machine structure, lower the noise significantly and reduce the mechanical failure.
3.Adopt dual driving for vertical sealing and advanced heating technology, lower the vertical sealing temperature, to protect the film and get a good seal.
4.The touch panel could store many kinds of parameters. So it's easy for the new operater to use or while change different products.

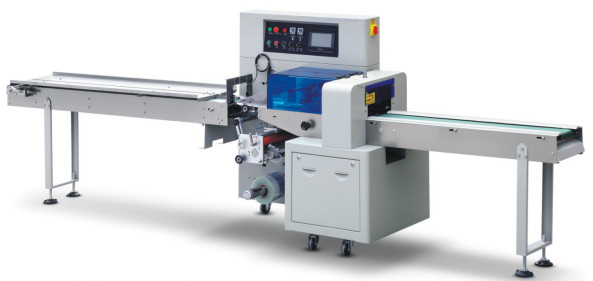

Automatic Face Mask Packing Machine With Bag Length Sensor

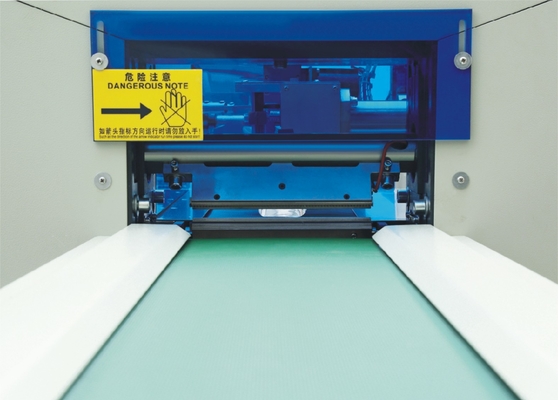

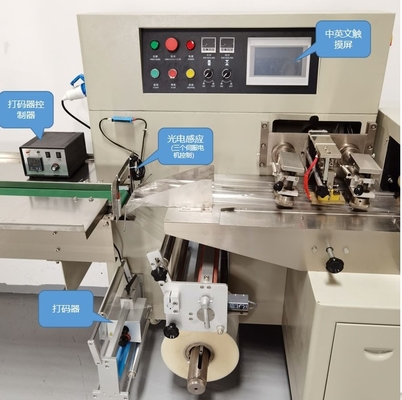

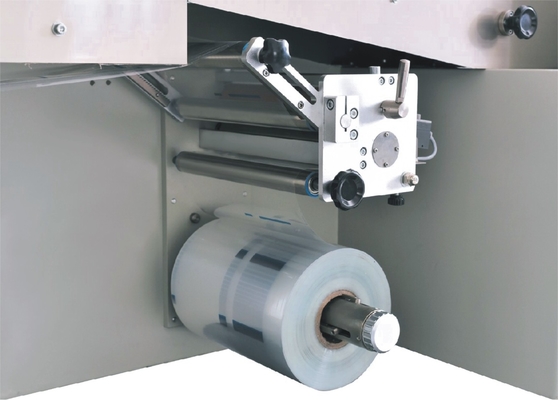

Details Image:
Automatic Face Mask Packing Machine With Bag Length Sensor
Technical Parameters
| Model | 350XSF | ||
| Film Width | Max.340mm | ||
| Bag Length | Any length controlled by sensor | ||
| Bag Width | 50-160mm | ||
| Product Height | Max.45mm-65mm | ||
| Film Roller Diameter | Max.320mm | ||
| Packing Speed | 10-25 meters/min | ||
| Power | 220V,50/60HZ,2.8KW | ||
| Machine Size | L3527*W765*H1375mm | ||
| Machine Weight | 550KG |
Packing Samples
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
