Product Details:
|
| Name: | Vertical Large Size Automatic Granule Packing Machine With Weighing And Bagging | Application: | Food,Chemical,Pharmaceutical, Other Industries. |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Accuracy: | 0.5g |
| Function: | Form ,Fill, Seal Cut | Packaging Material: | Film |
| Automatic Grade: | Automatic | Warranty: | 12 Months |
| After-sales Service: | Online Support | Customized: | Yes |
| Film Material: | OPP、PE、PVC、OPP/CPP、OPP/PE、PET/VM、PET/PE | Material Type: | Grain,Granules |
| Dosing: | Multi-head Weigher | ||
| High Light: | Vertical automatic granule packing machine,vffs automatic granule packing machine,bagging automatic weighing and packing machine |
||
Apply for the packaging of medical supplies, food, hardware and other particle in bulk such as electuary, spices,sugar, coffee,seeds and monosodium glutamate .

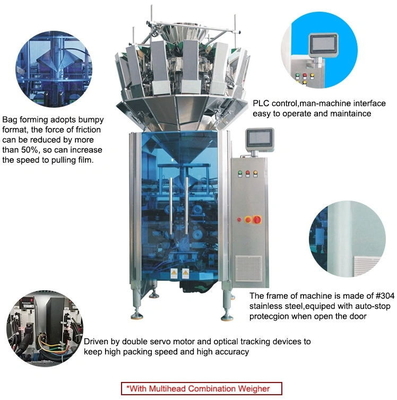

Features:
1.Fully automatic finishing whole process of feeding, weighing, filling bag, date printing, finished product output.
2.High accuracy and high speed.
3.Applicable to a wide range of materials.
4.Applicable to the customer who without special requirements of packaging and material is widely used.
5.It is suitable for weighing granule, slice, roll, or irregular shape products such as candy, seed, jelly, fries, coffee granule, peanut. puffy food, biscuit, chocolate, nut, pet food, frozen feeds, etc, It is also suitable for weighing small hardware and plastic components.

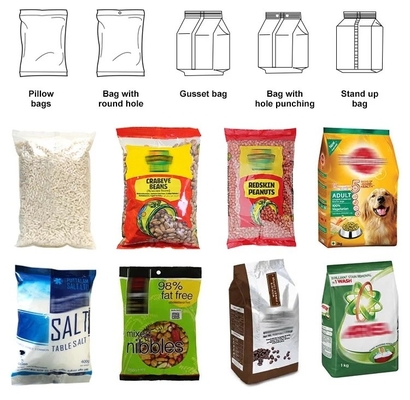

Bag Type
Vertical Large Size Automatic Granule Packing Machine With Weighing And Bagging
Specifications
| Model | 320# | 420# |
| Bag Making Size | L:60-250mm W:50-150mm | L:60-300mm W:60-200mm |
| Packing Speed | 40-100bags/min | 35-80bags/min |
| Power | 220V, 50/60HZ, 3KW | 220V, 50/60HZ, 3KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 300kg | 350kg |
| Machine Size | L1400*W1000*H1200mm | L1650*W1100*H1500mm |
| Model | 520# | 620# |
| Bag Making Size | L:80-350mm W:80-250mm | L:100-400mm W:100-300mm |
| Packing Speed | 30-80bags/min | 30-70bags/min |
| Power | 220V, 50/60HZ, 4KW | 220V, 50/60HZ, 4KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 350kg | 400kg |
| Machine Size | L1650*W1200*H1600mm | L1650*W1200*H1600mm |
| Model | 820# | 1250# |
| Bag Making Size | L:120-500mm W:120-400mm | L:150-800mm W:150-600mm |
| Packing Speed | 20-60bags/min | 5-30bags/min |
| Power | 220V, 50/60HZ, 4KW | 220V, 50/60HZ, 5KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 450kg | 500kg |
| Machine Size | L2050*W1600*H2050mm | L2128*W2057*H2385mm |
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
