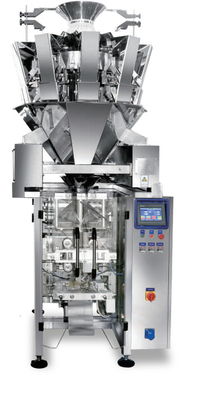

Product Details:
|
| Name: | Easy To Operate Automatic Large Vertical Granule Peanuts Packing Machine | Application: | Food,Chemical,Pharmaceutical, Other Industries. |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Accuracy: | 0.5g |
| Function: | Form ,Fill, Seal Cut | Packaging Material: | Film |
| Film Width: | <420mm | Sachet Making Size: | L: 80-300mm, W: 80-200mm |
| Power: | 220V,50/60Hz, 3.6KW | Packing Speed: | 30-80 Bags/min |
| Automatic Grade: | Automatic | Warranty: | 12 Months |
| After-sales Service: | Online Support | Customized: | Yes |
| Film Material: | OPP、PE、PVC、OPP/CPP、OPP/PE、PET/VM、PET/PE | Material Type: | Grain,Granules |
| Dosing: | Multi-head Weigher | Compressed Air: | 6-8kg/m^2, 0.3m^3/min |
| Machine Size: | L4600*W2000*H3600mm | Machine Weight: | 1000kg |
| High Light: | PLC Peanuts Packing Machine,granule Peanuts Packing Machine,Vertical vffs packaging machine |
||
This set of equipment can apply to pack grains and granules such as nuts, beans seeds, snacks etc.
Specifications
| Model | 320# | 420# |
| Bag Making Size | L:60-250mm W:50-150mm | L:60-300mm W:60-200mm |
| Packing Speed | 40-100bags/min | 35-80bags/min |
| Power | 220V, 50/60HZ, 3KW | 220V, 50/60HZ, 3KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 300kg | 350kg |
| Machine Size | L1400*W1000*H1200mm | L1650*W1100*H1500mm |
| Model | 520# | 620# |
| Bag Making Size | L:80-350mm W:80-250mm | L:100-400mm W:100-300mm |
| Packing Speed | 30-80bags/min | 30-70bags/min |
| Power | 220V, 50/60HZ, 4KW | 220V, 50/60HZ, 4KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 350kg | 400kg |
| Machine Size | L1650*W1200*H1600mm | L1650*W1200*H1600mm |
| Model | 820# | 1250# |
| Bag Making Size | L:120-500mm W:120-400mm | L:150-800mm W:150-600mm |
| Packing Speed | 20-60bags/min | 5-30bags/min |
| Power | 220V, 50/60HZ, 4KW | 220V, 50/60HZ, 5KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 450kg | 500kg |
| Machine Size | L2050*W1600*H2050mm | L2128*W2057*H2385mm |

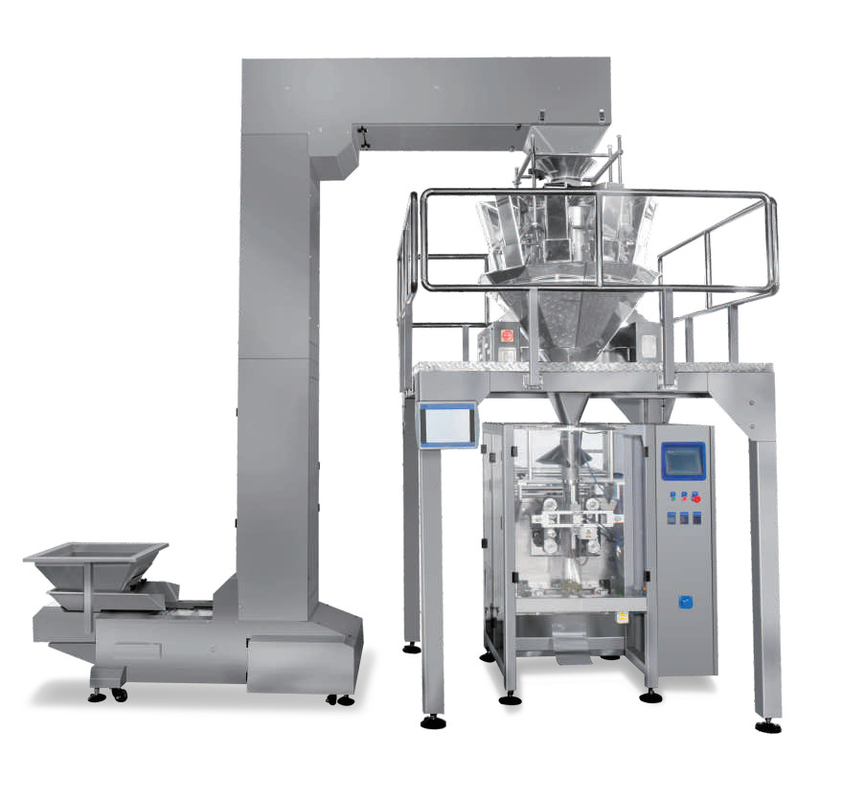

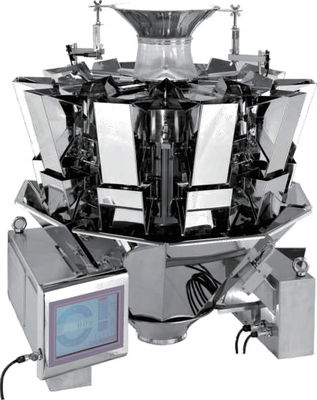

The line includes: "z" type elevator, vertical packing machine, working platform, multihead weigher
Packing Samples
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
