Product Details:
|
| Name: | Automatic Small Size Double Lines Snacks Pouch Packing Machine | Application: | Food,Chemical,Pharmaceutical, Other Industries. |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Accuracy: | 0.5g |
| Function: | Form ,Fill, Seal Cut | Packaging Material: | Film |
| Dosing Device: | Measuring Cup | Film Width: | <300mm |
| Cutting Type: | Round Corner/Slice Cut/Toothed Cut | Sachet Making Size: | L: 30-165mm, W: 30-150mm |
| Power: | 1P/220V/50Hz, 1.5KW | Packing Speed: | 60-160 Bags/min |
| Automatic Grade: | Automatic | Warranty: | 12 Months |
| After-sales Service: | Online Support | Customized: | Yes |
| Film Material: | OPP, CPP, PE, PET | Material Type: | Grain |
| Dosing: | Measuring Cup | ||
| High Light: | Double Automatic Granule Packing Machine,Small Automatic Granule Packing Machine,Automatic snacks pouch packing machine |
||
This machine is suit for small sachet packaging of granule products such as coffee/sugar/salt/bean/candy/seed/spice/nut/snack/grain/dried fruit/pet food/puffed food/frozen food/dry food, etc
Features:
1.Equipped with safety protection device.
2. Double-feed packaging structure save space and increase the packing speed.
3. Using PLC servo driving system.
4.The large touch screen can store many packaging parameters, don't need to reset everytime.
5. The two machines can work together or indepently.
6. The machine made from stainless steel.
Bag type
Machine Working Flow
Technical Parameters
| Model | JSL-300 |
| Bag Type | Special shape, 3/4 sides seal or back side seal |
| Bag Size | W: 30-165mm L:30-150mm |
| Packing Speed | 60-160 bags/min |
| Method of Measurement | Measuring cup type |
| Range of Measurement | 0-330ml |
| Total Power | 1500W |
| Cutting type | round corner cut/ slice cut/ linked bags/ toothed cut |
| Machine Size (L*W*H) | 930*730*1700mm |
| Voltage | 380V or 220V or made accordingly |

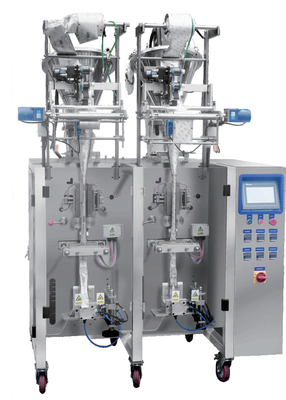

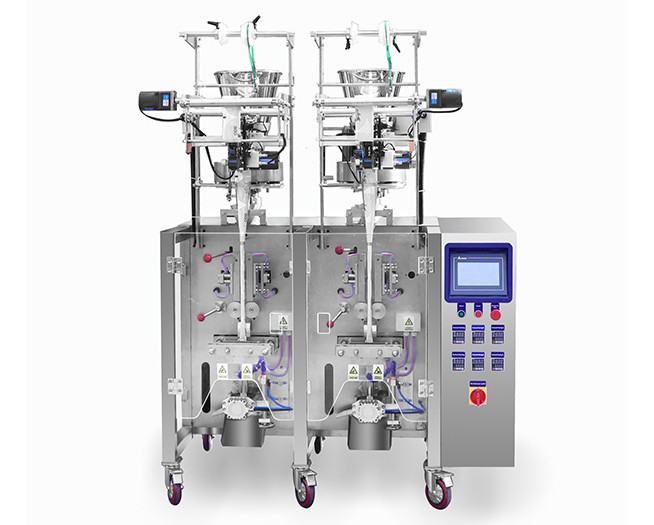

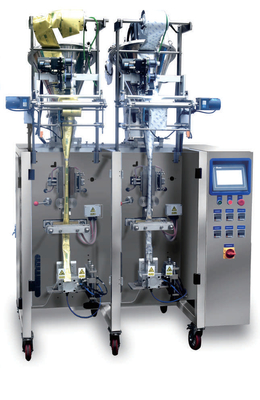

Automatic Small Size Double Lines Snacks Pouch Packing Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
