Automatic Potato Chips Packing Machine Coffee Beans Seeds Grains Packing Machine

Automatic Potato Chips Packing Machine Coffee Beans Seeds Grains Packing Machine
large.img.alt
Automatic Potato Chips Packing Machine Coffee Beans Seeds Grains Packing Machine Automatic Potato Chips Packing Machine Coffee Beans Seeds Grains Packing Machine Automatic Potato Chips Packing Machine Coffee Beans Seeds Grains Packing Machine Automatic Potato Chips Packing Machine Coffee Beans Seeds Grains Packing Machine

Large Image :  Automatic Potato Chips Packing Machine Coffee Beans Seeds Grains Packing Machine

Product Details:
Place of Origin: Suzhou, China
Brand Name: Jinshanli
Certification: ISO, SGS
Model Number: 420
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20000-40000
Packaging Details: Exported Wooden Case
Delivery Time: 40 working day
Payment Terms: T/T
Supply Ability: 50 set/month

Automatic Potato Chips Packing Machine Coffee Beans Seeds Grains Packing Machine

Description
Name: Automatic Coffee Beans Seeds Nuts Grain Potato Chips Packing Machine Application: Food,Chemical,Pharmaceutical, Other Industries.
Machine Material: 304# Stainless Steel Driven Type: Electric
Controller System: PLC Accuracy: 0.5g
Function: Form ,Fill, Seal Cut Packaging Material: Film
Film Width: <420mm Sachet Making Size: L: 80-300mm, W: 80-200mm
Power: 220V,50/60Hz, 3.6KW Packing Speed: 30-80 Bags/min
Automatic Grade: Automatic Warranty: 12 Months
After-sales Service: Online Support Customized: Yes
Film Material: OPP、PE、PVC、OPP/CPP、OPP/PE、PET/VM、PET/PE Material Type: Grain,Granules
Dosing: Multi-head Weigher Compressed Air: 6-8kg/m^2, 0.3m^3/min
Machine Size: L4600*W2000*H3600mm Machine Weight: 1000kg
High Light:

Automatic potato chips packing machine

,

SGS potato chips packing machine

,

3.6KW coffee beans packing machine

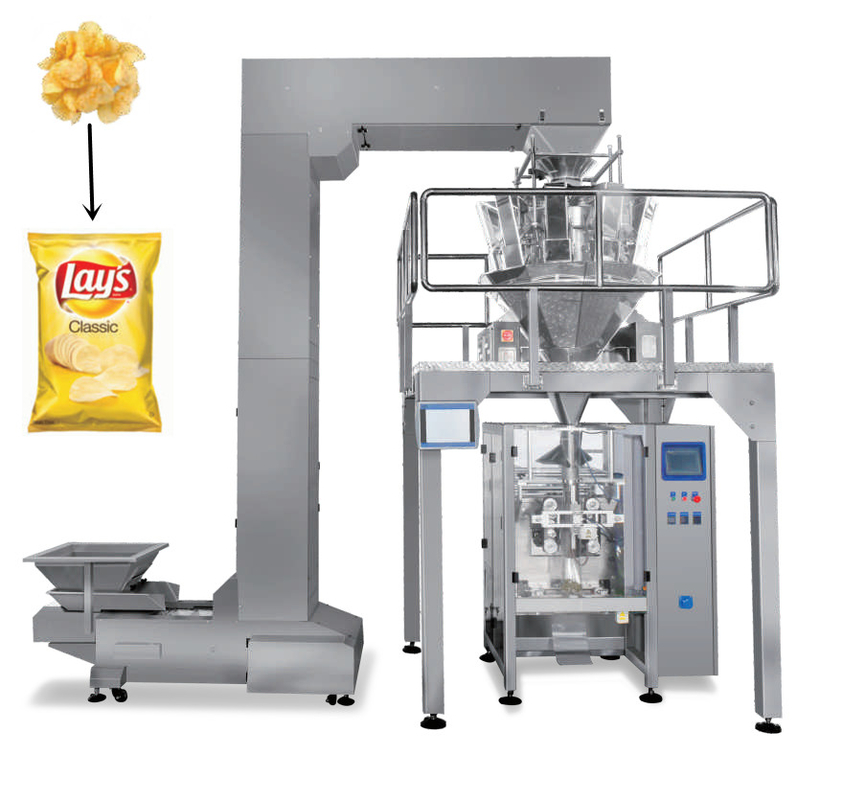

Automatic Coffee Beans Seeds Nuts Grain Potato Chips Packing Machine

This set of equipment can apply to pack grains and granules such as nuts, beans seeds, snacks etc.







Features:

1. Automatic feeding, filling, measuring, bag making, bagging, deviation, filling, charging (exhaust), sealing, date printing and finished product output.
2, the machine uses high-precision servo film conveying system, measuring accuracy ± 0.5 g, PLC program control, developed advanced automatic positioning, photoelectric tracking, digital temperature control and other touchable human-machine interface.
3. The operation is simpler and more perfect. It is the first choice in the food packaging industry, improving production efficiency, speed up to 80 packs per minute, reducing labor intensity and improving the grade of packaging equipment.
4. Packaging materials can be PE / polyethylene, PE / aluminum plating, pet / PE, PP and other heat-sealing packaging materials.
5. High-sensitivity touch screen, automatic memory 8 sets of parameters, can be used in multiple languages,Automatic Vertical Granules Packing Line For Large Package

Automatic Potato Chips Packing Machine Coffee Beans Seeds Grains Packing Machine 0

Automatic Coffee Beans Seeds Nuts Grain Potato Chips Packing Machine

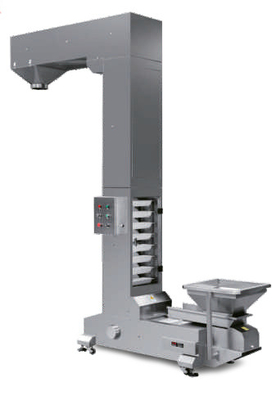

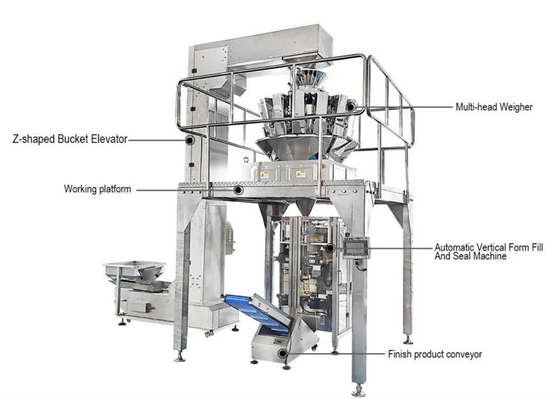

The line includes: "z" type elevator, vertical packing machine, working platform, multihead weigher

Automatic Potato Chips Packing Machine Coffee Beans Seeds Grains Packing Machine 1



Automatic Coffee Beans Seeds Nuts Grain Potato Chips Packing Machine

Specifications

Model 320# 420#
Bag Making Size L:60-250mm W:50-150mm L:60-300mm W:60-200mm
Packing Speed 40-100bags/min 35-80bags/min
Power 220V, 50/60HZ, 3KW 220V, 50/60HZ, 3KW
Compressed Air Consumption 6-8kg/㎡ 6-8kg/㎡
Air Consumption 0.3m³/min 0.3m³/min
Weight 300kg 350kg
Machine Size L1400*W1000*H1200mm L1650*W1100*H1500mm
Model 520# 620#
Bag Making Size L:80-350mm W:80-250mm L:100-400mm W:100-300mm
Packing Speed 30-80bags/min 30-70bags/min
Power 220V, 50/60HZ, 4KW 220V, 50/60HZ, 4KW
Compressed Air Consumption 6-8kg/㎡ 6-8kg/㎡
Air Consumption 0.3m³/min 0.3m³/min
Weight 350kg 400kg
Machine Size L1650*W1200*H1600mm L1650*W1200*H1600mm
Model 820# 1250#
Bag Making Size L:120-500mm W:120-400mm L:150-800mm W:150-600mm
Packing Speed 20-60bags/min 5-30bags/min
Power 220V, 50/60HZ, 4KW 220V, 50/60HZ, 5KW
Compressed Air Consumption 6-8kg/㎡ 6-8kg/㎡
Air Consumption 0.3m³/min 0.3m³/min
Weight 450kg 500kg
Machine Size L2050*W1600*H2050mm L2128*W2057*H2385mm



Automatic Coffee Beans Seeds Nuts Grain Potato Chips Packing Machine

Q&A



Q1: Are you a factory or a trade company?

A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.



Q2: How can I trust you?

A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China



Q3: How to find a suitable machine for my products.

A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .



Q4: How can you guarantee the machine quality?

A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.



Q5:Can you explain the whole transaction process?

A: 1.Inquiry and communiate to comfirm the details and requirements.

2. Sign the contract.

3. Arrange 30% deposit to our company.

4. Factory arrange production.

5. Testing and detecting the machine.

6. Inspected by the customer.

7. Arrange the balance payment before shipment.



Q6: Is the engineer available to serve overseas?

A: Yes, but you need to pay the trip expense.

In order to save your cost, we can support via on-line video call.
