Product Details:
|
| Name: | Full Automatic Flap Insert Hot Glue Carton Box Manufacturing Machine | Application: | Food, Cosmetics, Pharmaceuticals, Wafer, Biscuit, Snack, Dessert, Beverage, Powder |
|---|---|---|---|
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Customization: | Available | Forming Species: | Box Molding |
| Function: | Form, Fill, Glue/insert | Material Type: | Solid |
| Packaging Material: | Paper | Control System: | PLC |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| High Light: | full Automatic corrugated box making machine,Food wafer corrugated box making machine,flap Insert carton box manufacturing machine |
||
Features:
1. Adopt automatic feeding, open carton, into carton, sealing carton and output etc packaging form. The structure is compact and reasonable, and the operation adjustment is simple.
2. Adopting servo / stepper motor and touch screen, PLC programmable control system, man-machine interface display operation is more clear and simple, high degree of automation, more humane.
3. Adopting photoelectric eye automatic detection and tracking system, no product does not suck the carton, to maximize the saving of packaging materials.
4. When changing the specification, no need to change the mold, just need adjustment.
5. Automatic show cartoning speed and counting.
6. Can be linked with aluminum-plastic packaging machine, pillow packaging machine, three-dimensional packaging machine, bottling line, filling machine, labeling machine, inkjet printer, online weighing instrument, other production lines and other equipment.

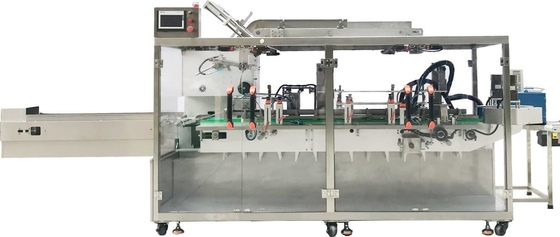

Full Automatic Flap Insert Hot Glue Carton Box Manufacturing Machine
Packing Samples

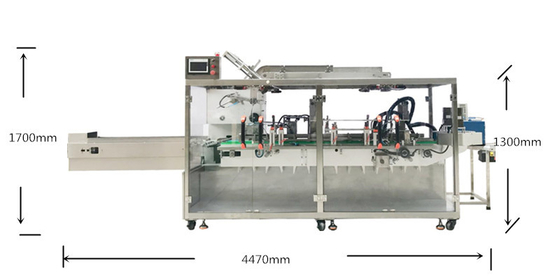

Full Automatic Flap Insert Hot Glue Carton Box Manufacturing Machine
Technical Parameters
| Model | 30-60PJ/CH |
| Speed | 40-50pieces/min |
| Adjustable Box Size |
L:100-220mm W:100-180mm H:20-70mm |
| Paper Specification | 250-400g/m^2 |
| Power | 1-4.5kw |
| Voltage | 220V,50HZ |
| Air Pressure | 0.5- 0.8Mpa |
| Air Consuption | 15-20L/min |
Suitable for the following Box Type
Full Automatic Flap Insert Hot Glue Carton Box Manufacturing Machine
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
