Home ProductsAutomatic Granule Packing Machine

Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate

Certification
China Jinshanli Intelligent Technology(Suzhou)Co.,Ltd certification
China Jinshanli Intelligent Technology(Suzhou)Co.,Ltd certification
I'm Online Chat Now

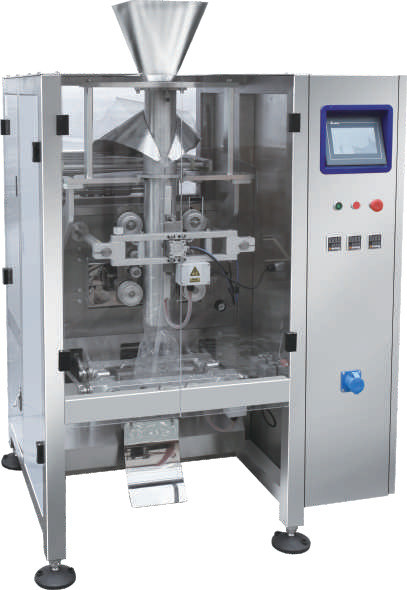

Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate

Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate
Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate

Large Image :  Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate

Product Details:
Place of Origin: Suzhou, China
Brand Name: Jinshanli
Certification: ISO, SGS
Model Number: 320#
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 16,000-20,000/set
Packaging Details: Exported wooden case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 60 sets/month

Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate

Description
Name: Medium Size Chocolate Balls Granules Seeds Nuts Automatic Vertical Packing Machine With Vibrating Plate Application: Granules
Customized: Yes Control System: PLC
Molding Type: Bag Packaging Material: Film
Dosing: Counting Warranty: 12 Months
After-sale Service: Online Support
High Light:

100bags/min Automatic Vertical Packing Machine

,

PLC Medium Automatic Vertical Packing Machine

,

Granules nuts packing machine

Automatic Medium Size Chocolate Balls Granules Seeds Nuts Packing Machine With Vibrating Plate



Features

1. This machine is made of 304 stainless steel and does not pollute materials, and adapt to more scenes.
2. The machine has the functions of automatic bag making, metering, blanking, sealing, cutting, counting, etc., and can add printing date, continuous bagging, inflation, Gusset bag, punching device, easy tearing device, etc. according to customer requirements .

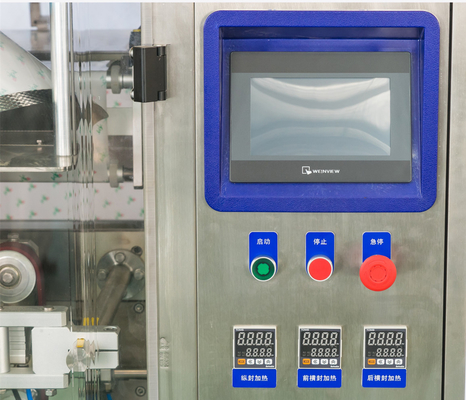

3. The machine adopts a 7.5-inch LCD screen, which can use 6 languages such as Chinese, English, Korean, Japanese, Spanish, and Russian. It can also be customized according to your needs.
4. PLC intelligent control system, you can set the bag length, packaging speed, sealing temperature, and photoelectric eye detection switch, easy to operate.
5. This machine has 3 kinds of sealing methods, back sealing, three-side sealing, four-side sealing, you can choose.
6. The machine has its own fault self-diagnosis function. When the machine fails, the system intelligently displays the cause of the fault and eliminates the fault in time.





Medium Size Chocolate Balls Granules Seeds Nuts Automatic Vertical Packing Machine With Vibrating Plate



Technical Parameters

Model 320#
Bag Making Size L:60-250mm, W:50-150mm
Packing Speed 40-100bags/min
Power 220V, 50/60HZ, 3KW
Compressed Air 6-8kg/m²
Air Consumption 0.3m³/min
Machine Weight 300kg
Machine Size L1400*W1000*H1200mm

Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate 0

Medium Automatic Vertical Packing Machine Granules Seeds Nuts Vibrating Plate 1



Medium Size Chocolate Balls Granules Seeds Nuts Automatic Vertical Packing Machine With Vibrating Plate



Q1: Are you a factory or a trade company?

A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.



Q2: How can I trust you?

A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China



Q3: How to find a suitable machine for my products.

A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .



Q4: How can you guarantee the machine quality?

A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.



Q5:Can you explain the whole transaction process?

A: 1.Inquiry and communiate to comfirm the details and requirements.

2. Sign the contract.

3. Arrange 30% deposit to our company.

4. Factory arrange production.

5. Testing and detecting the machine.

6. Inspected by the customer.

7. Arrange the balance payment before shipment.



Q6: Is the engineer available to serve overseas?

A: Yes, but you need to pay the trip expense.

In order to save your cost, we can support via on-line video call.
