Product Details:
|
| Name: | Fully Automatic Horizontal Rotary Lolly Popsicle Frozen Food Packing Machine | Application: | Popsicle, Ice Lolly, Ice Pop Etc. |
|---|---|---|---|
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Control System: | PLC | Function: | Feeding,Conveying, Forming,Sealing,Cutting |
| Packaging Material: | Film | Film Width: | <250mm |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| High Light: | 230 bags/min Frozen Food Packing Machine,Horizontal Rotary Frozen Food Packing Machine,Lolly popsicle packing machine |
||
Machine Introduction
1. Double motors, double transducers and PLC controller, flexible bag length setting and cutting, can save time and film.
2. Human-machine interface, convenient and quick parameter settings.
3.Self diagnosis failure function,failure is displayed on the screen clearly.
4. High sensitive optical electric color mark tracing system and digital input cut position,which make the sealing and cutting more accurate.
5.Separated PID control system for temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no film sticking on the knife and no waste of film.
7.Simple driving system, reliable working, convenient maintenance.
8.All controlled by program, convenient for function adjusting and upgrading.
| Model | 250B | 250D |
| Film Width | Max.240mm | |
| Bag Length | Two Cutting Knives:65-190mm | Two Cutting Knives:90-220mm |
| One Cutting Knives:120-280mm | One Cutting Knives:150-330mm | |
| Bag Width | 30-110mm | |
| Product Height | Max.40mm | Max.55mm |
| Film Roller Diameter | Max.320mm | |
| Packing Speed | 40-230bags/min | |
| Power | 220V,50/60HZ, 2.4KW | |
| Machine Size | L3624*W670*H1412mm | |
| Machine Weight | 800kg |
|

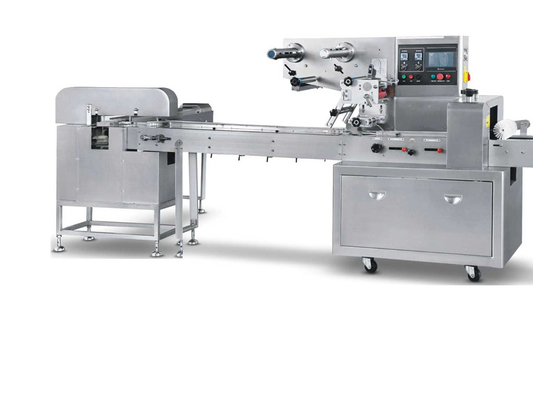

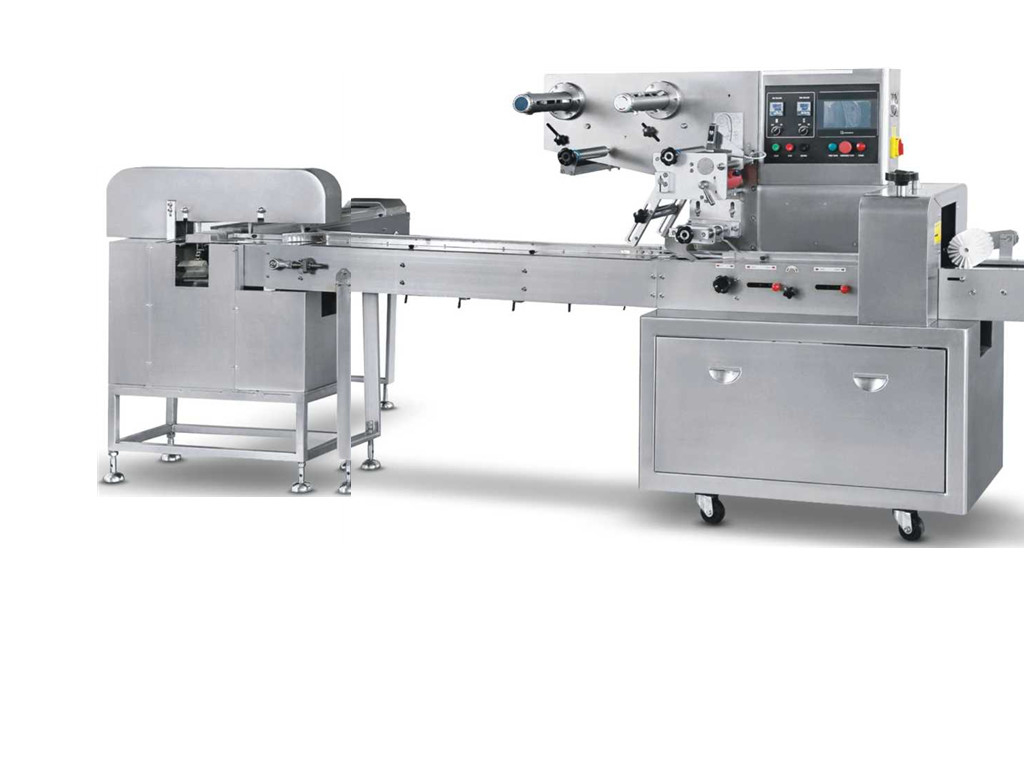

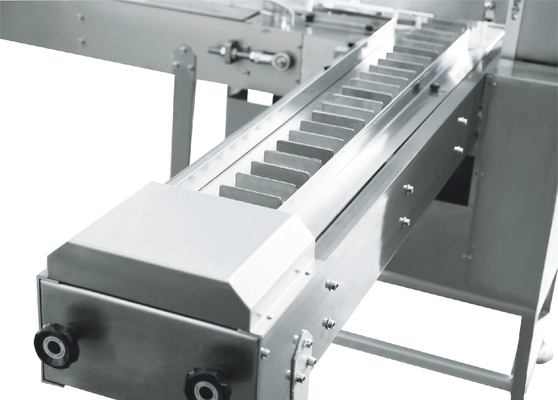

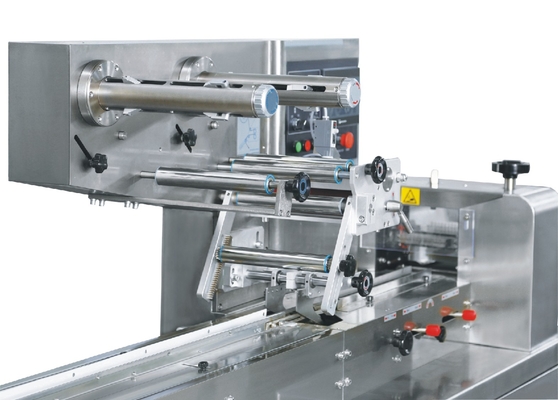

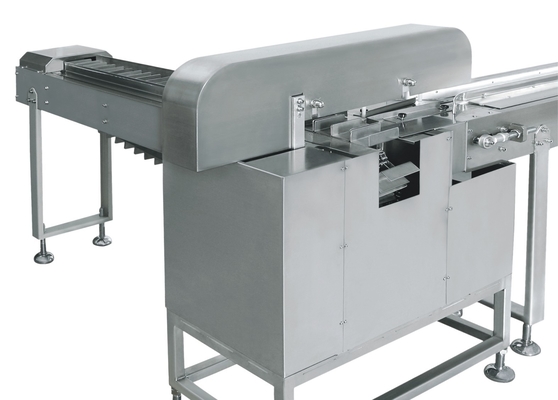

Machine Details:
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
