Product Details:
|
| Name: | Automatic Large Vertical Paste Sauce Liquid Auto Packing Machine | Application: | Pesticide, Shampoo, Body Lotion, Cream, Sauce, Jam, Ketchup, Honey,Juice And Other Liquid Products |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Function: | Dose, Form, Fill, Seal, Cut |
| Dosing Device: | Liquid Bump By Volume | Packaging Material: | Film |
| Film Material: | OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE | Film Width: | <600mm |
| Sachet Making Size: | L: 150-480mm W: 100-250mm | Packing Speed: | 4-15 Bags/min |
| Power: | 380V/50Hz, 4.5kw | Air Pressure: | 0.6Mpa |
| Air Consumption: | 0.006m^3/min | Machine Weight: | 720kg |
| Machine Size: | L4200*W1100*H1587mm | Warranty: | 12 Months |
| After-sales Service: | Online Support | ||
| High Light: | PLC Large Automatic Food Packaging Machine,4.5KW paste Automatic Food Packaging Machine,sus304 vertical liquid filling machine |
||
Introduction:
This machine is suitable for packing liquid, sauce and paste , such as honey, ketchup, syrup, jam, drinking,Oil/Liquid/Lotion/Shampoo/Jelly/Syrup/ Liquid Soap/Juice/Tomato Paste and so on.
Our machine are widely using in food, beverage, condiments, medicine, daily chemical and hardware industry. Applicable to packing puffing snacks, granules, tea, toys, powder, liquid, sauce, paste, cream and so on.
Features:
Technical Parameters
| Model | 600# |
| Forming bag size(mm) | L:150-480 W:100-250 |
| Film material | OPP PE PVC OPP/CPP OPP/PE PET/VMPET/PE |
| Film width(mm) | 220-560 |
| Filling weight | 10-5000g |
| Packaging speed | 4-15bags/min |
| Filling volume | Max.5000cc |
| Sealing type | back sealing |
| Power | AC 380v/50hz 4.5KW |
| Pressure | 0.6Mpa |
| Air consumption | 0.06m3/min |
| Machine Weight | 720kg |
| Machine Size | L4200*W1100*H1587mm |

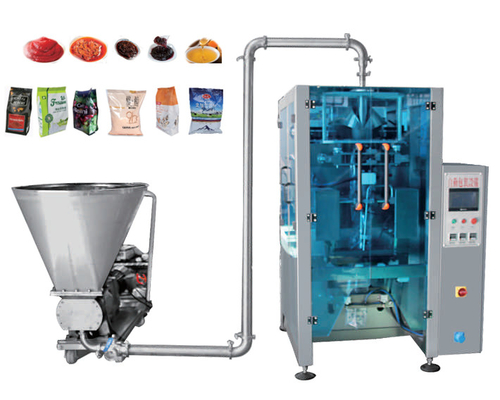

Machine Details
Automatic Large Vertical Paste Sauce Liquid Auto Packing Machine
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
