Product Details:
|
| Name: | Vertical Large Weighing Filling Sealing Food Grains Packing Machine | Application: | Food,Chemical,Pharmaceutical, Other Industries. |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Accuracy: | 0.5g |
| Function: | Form ,Fill, Seal Cut | Packaging Material: | Film |
| Automatic Grade: | Automatic | Warranty: | 12 Months |
| After-sales Service: | Online Support | Customized: | Yes |
| Film Material: | OPP、PE、PVC、OPP/CPP、OPP/PE、PET/VM、PET/PE | Material Type: | Grain,Granules |
| Dosing: | Multi-head Weigher | ||
| High Light: | IP65 food grains packing machine,3KW food grains packing machine,PLC automatic weighing and filling machine |
||
Application:
--This machine is suitable for many kinds of grain such as:
--puffed food, candy, quick-frozen, pet food, potato chips, crispy rice, walnuts, pistachio nuts, candy, melon seeds, quick-frozen dumplings, dumplings, jelly, plum, peanuts, chocolate, nuts, and other granular material..
--We can also custom according to your pack material .
Features:

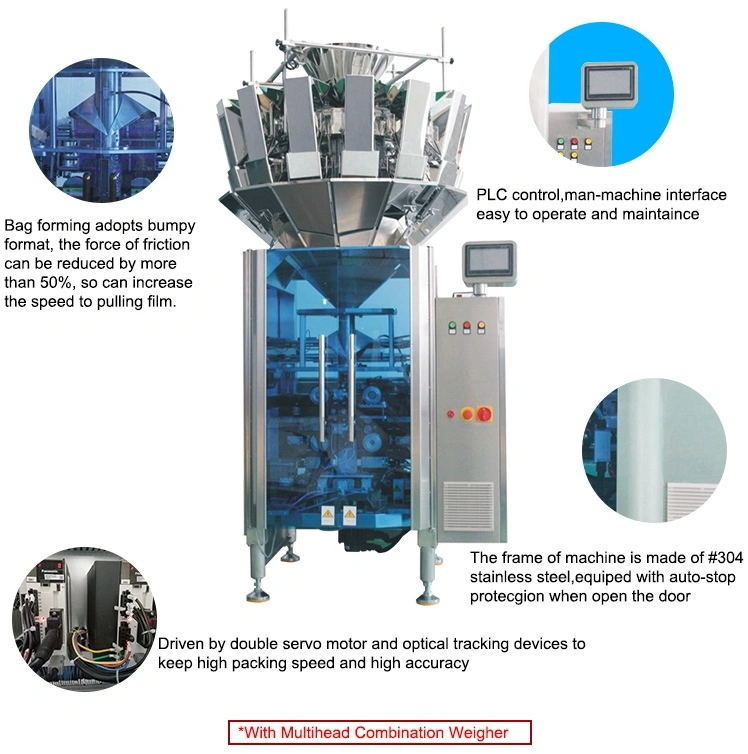

♦. Combination scale, picking the best combination through the computer,got high accuracy and speed .
♦. High-precision digital weighing sensor make sure the measure realized.
♦. Chinese/English or custom your language shows on the touch screen,can save 10 kinds of working parameters in it.
♦. Design of dust-proof and water-proof of IP65 system. All the parts of machine is made by stainless steel, very cleanly. The whole close prevent the accumulation of material, easy for clean.
♦. You can adjust the speed of material-door's open according to the feature of material, prevent of material's break.
♦. The automatic date statistical functions records every bags, pass rate and deviation during a produce.
♦. Optional equipment: Patterned hopper, material hopper, printing set and other set.

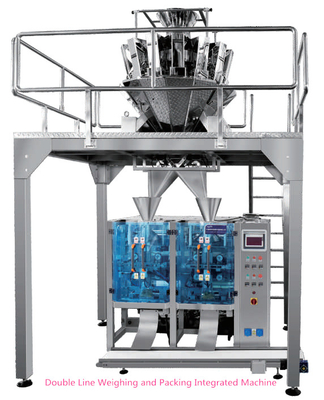

Vertical Large Weighing Filling Sealing Food Grains Packing Machine
Specifications
| Model | 320# | 420# |
| Bag Making Size | L:60-250mm W:50-150mm | L:60-300mm W:60-200mm |
| Packing Speed | 40-100bags/min | 35-80bags/min |
| Power | 220V, 50/60HZ, 3KW | 220V, 50/60HZ, 3KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 300kg | 350kg |
| Machine Size | L1400*W1000*H1200mm | L1650*W1100*H1500mm |
| Model | 520# | 620# |
| Bag Making Size | L:80-350mm W:80-250mm | L:100-400mm W:100-300mm |
| Packing Speed | 30-80bags/min | 30-70bags/min |
| Power | 220V, 50/60HZ, 4KW | 220V, 50/60HZ, 4KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 350kg | 400kg |
| Machine Size | L1650*W1200*H1600mm | L1650*W1200*H1600mm |
| Model | 820# | 1250# |
| Bag Making Size | L:120-500mm W:120-400mm | L:150-800mm W:150-600mm |
| Packing Speed | 20-60bags/min | 5-30bags/min |
| Power | 220V, 50/60HZ, 4KW | 220V, 50/60HZ, 5KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 450kg | 500kg |
| Machine Size | L2050*W1600*H2050mm | L2128*W2057*H2385mm |
Bag Type
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
