Product Details:
|
| Name: | Automatic Medium Size Granule Vertical Packing Machine With 4-Heads Weigher | Application: | Food,Chemical,Pharmaceutical, Other Industries. |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Accuracy: | 0.5g |
| Function: | Form ,Fill, Seal Cut | Packaging Material: | Film |
| Dosing Device: | 4-heads Weigher | Film Width: | <420mm |
| Sachet Making Size: | L: 80-300mm, W: 80-200mm | Power: | 220V,50/60Hz, 3.6KW |
| Packing Speed: | 30-80 Bags/min | Automatic Grade: | Automatic |
| Film Material: | OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VM, PET/PE | Material Type: | Grain |
| Compressed Air: | 6-8kg/m^2, 0.3m^3/min | Machine Size: | L4600*W2000*H3600mm |
| Machine Weight: | 500kg | Customized: | Yes |
| After-sales Service: | Online Support | Warranty: | 12 Months |
| High Light: | vffs Automatic Granule Packing Machine,Medium Automatic Granule Packing Machine,4 Heads multihead weigher packing machine |
||
Introduction:

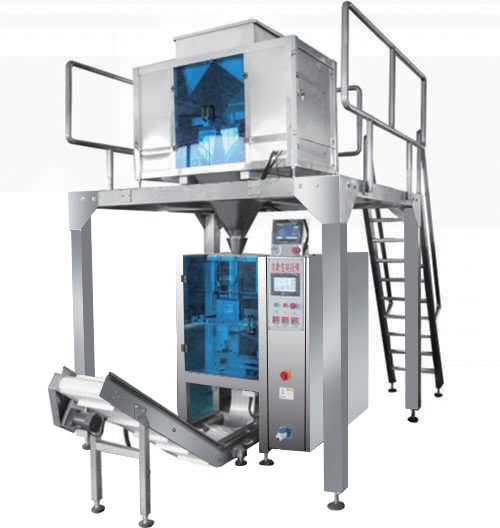

This set of automatic weighing and packing system includes:
1.Vibration feeding type "Z" material lifting equipment.

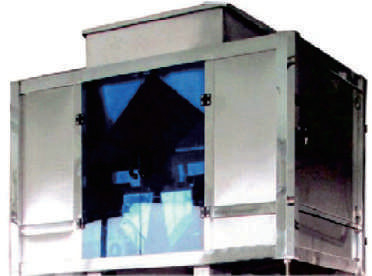

2. 4 Weighing equipment.

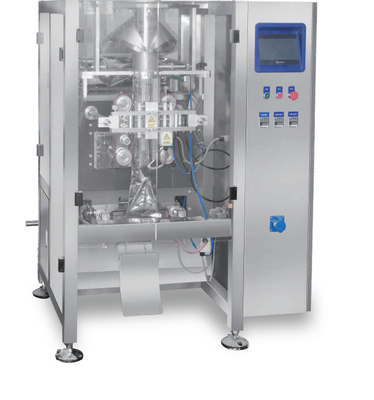

3. Automatic vertical packing machine
4. Working platform.
5. Product conveying equipment.
Features:
This system will finish all the process automatically: feed, date print, finished product conveying. It has the advantages of high accurate weighing, high efficency.
Apply to pack: grains, washing powder, water wizard, seasoning powder etc.
Machine Working Flow
Specifications
| Model | 320# | 420# |
| Bag Making Size | L:60-250mm W:50-150mm | L:60-300mm W:60-200mm |
| Packing Speed | 40-100bags/min | 35-80bags/min |
| Power | 220V, 50/60HZ, 3KW | 220V, 50/60HZ, 3KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 300kg | 350kg |
| Machine Size | L1400*W1000*H1200mm | L1650*W1100*H1500mm |
| Model | 520# | 620# |
| Bag Making Size | L:80-350mm W:80-250mm | L:100-400mm W:100-300mm |
| Packing Speed | 30-80bags/min | 30-70bags/min |
| Power | 220V, 50/60HZ, 4KW | 220V, 50/60HZ, 4KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 350kg | 400kg |
| Machine Size | L1650*W1200*H1600mm | L1650*W1200*H1600mm |
| Model | 820# | 1250# |
| Bag Making Size | L:120-500mm W:120-400mm | L:150-800mm W:150-600mm |
| Packing Speed | 20-60bags/min | 5-30bags/min |
| Power | 220V, 50/60HZ, 4KW | 220V, 50/60HZ, 5KW |
| Compressed Air Consumption | 6-8kg/㎡ | 6-8kg/㎡ |
| Air Consumption | 0.3m³/min | 0.3m³/min |
| Weight | 450kg | 500kg |
| Machine Size | L2050*W1600*H2050mm | L2128*W2057*H2385mm |
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
