Product Details:
|
| Name: | Automatic Medium Size Vertical Granule Filling Machine With Two Servo Motors | Application: | Food,Chemical,Pharmaceutical, Other Industries. |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Accuracy: | 0.5g |
| Function: | Form ,Fill, Seal Cut | Packaging Material: | Film |
| Dosing Device: | Measuring Cup | Film Width: | <320mm |
| Sachet Making Size: | L: 50-180mm, W: 50-150mm | Power: | 220V,50/60Hz, 3.6KW |
| Packing Speed: | 20-105 Bags/min | Automatic Grade: | Automatic |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| Customized: | Yes | Film Material: | OPP, CPP, PE, PET |
| Material Type: | Grain | Compressed Air: | 6-8kg/m^2, 0.3m^3/min |
| Machine Size: | L1250*W1200*H1300 | Machine Weight: | 350kg |
| High Light: | Medium vffs packaging machine,Granule vffs packaging machine,Two Servo Motors granule packing machine |
||

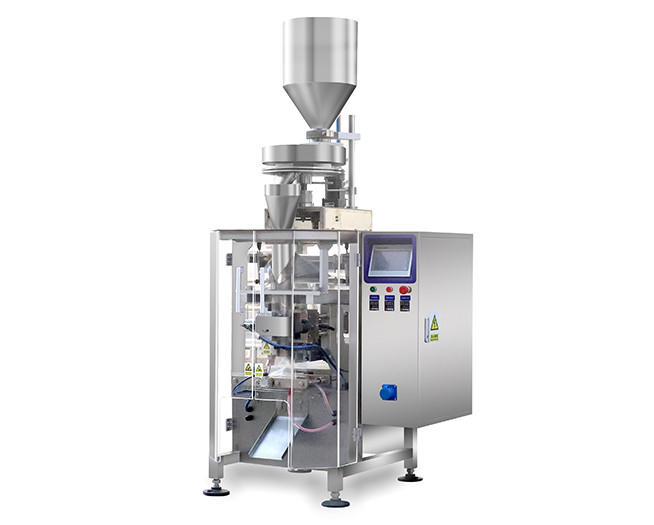

This is a machine developed by weighing machine and sachet bag filing and sealing machine. And it realizes the sachet bag granular packing. The machine is controlled by microcomputer, precise high speed humanized design, easy to operate. By adjusting the temperature, setting the bag length and setting the film delivery speed, a good packaging effect can be achieved.
Feature
1.There is protection device.
2.Smart temperature controller.
3.PLC servo control system, air-actuated control system, big touch screen.
4.Function: dosing, bag making, filling, exhaust, sealing,cutting,
5.Can store many packing parameters.
6.There is fault display function, to show you the problem.
7.Except for the normal bag forming type, gusset bag and punching are optional.
Packing Samples
Machine Working Flow
| Model | JSL-320 |
| Bag Type | Special shape, 3/4 sides seal or back side seal etc. |
| Bag Size | W: 50-180mm L:50-150mm |
| Packing Speed | 20-105 bags/min |
| Method of Measurement | Measuring cup type |
| Compressed air consumption |
6-8kg/m2 ~0.3m3 /min |
| Total Power | 3.6KW |
| Cutting type | round corner cut/ slice cut/ linked bags/ toothed cut |
| Machine Size (L*W*H) | L1661*W1160*H2291mm |
| Voltage | 220V, 50/60HZ |
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
