Product Details:
|
| Name: | Automatic Horizontal Flow Food Container Packing Machine With Products Feeding | Function: | Products Feeding, Container Feeding, Bag Forming, Products Filling, Bag Sealing, Bag Cutting |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Packaging Material: | Film |
| Film Material: | OPP, CPP, PE, PET | Film Width: | <340mm |
| Warranty: | 12 Months | Application: | Food |
| After-sales Service: | Online Support | Automatic Grade: | Automatic |
| High Light: | sus304 Food Container Packing Machine,8KW Food Container Packing Machine,180 bags/min food container sealing machine |
||

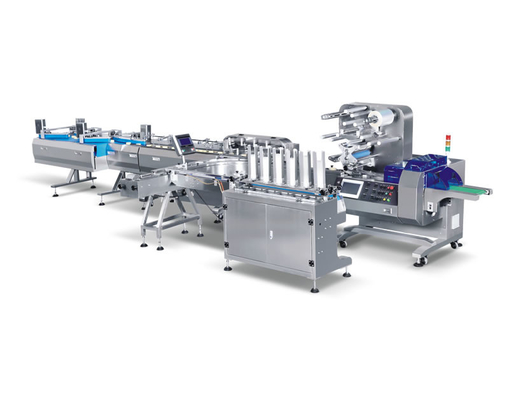

Machine Introduction
1. Full automatic loading container machine line is consist of pull conveyor, distributor, feeding unit, and automatic packaging composition, automatic sub support, arrangement, assemble, confluence processing, products can be sent into the container and be packed accurately.
2. It can be separatethe container from the machine and also make the products load in the container synchronously by the program, it can pack together with deoxidiser, alcohol tablet, automatic arrangement, packaging, in the process of packaging, prevent the operator from touching the food, avoid pollution, meet the sanitary requirement of food hygiene.
3. The whole machine can be intelligent operated by touching the screen and the embed PLC, the product menu function can be configured and adjusted conveniently and quickly.
4.Panasonic driver control system to ensure the stability and reliability of the packaging machine, avoiding empty packaging completely, reducing waste material.
5. The whole conveyor belt is designed with cantilever frame, which is simple and convenient for installed, disassembled and cleaned, satisfy the requirements for production hygiene management for the users.
6. The whole packing machine is equipped with multiple safety precaution, including electric leakage protection, emergency stop function, fault stop protection, protective cover, warning lights etc.
Technical Parameters and Specification
| Model | YB-260B | YB-260D | |
| Film Width | Max.340mm | ||
| Bag Length | Double Knife | 65-190mm | 90-220mm |
| Single Knife | 120-280mm | 150-330mm | |
| Bag Width | 50-160mm | ||
| Product Height | Max.55mm/60mm | ||
| Film Roller Diameter | Max.320mm | ||
| Packing Speed | 80-180bags/min | ||
| Power | 220V,50/60HZ,8KW | ||
| Machine Size | L7090*W2383*H1600mm | ||
| Machine Weight | 2195KG | ||

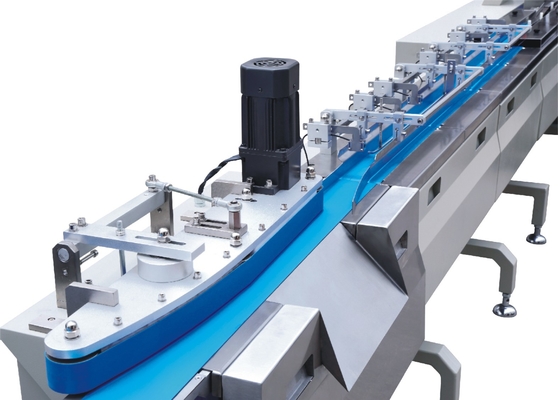

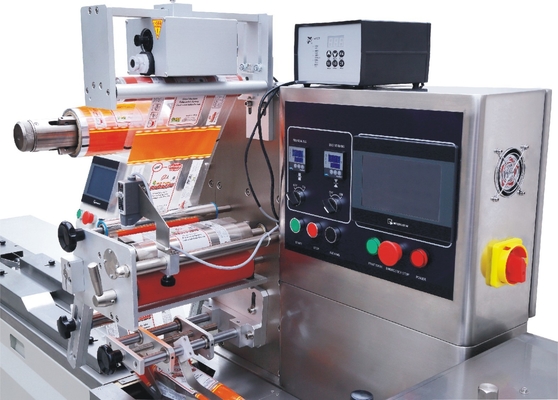

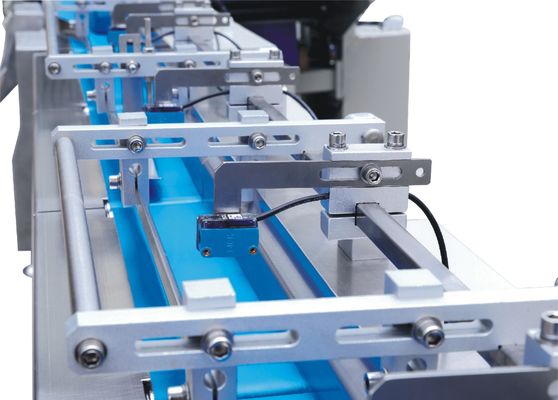

Machine Details:
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
