Product Details:
|
| Name: | Horizontal Food Granules Doypack Zipper Bag Nozzle Bag Premade Pouch Packaging Machine | Application: | Granules, Grains, Nuts, Beans, Seeds Etc. |
|---|---|---|---|
| After-sales Service: | Online Support | Warranty: | 12 Months |
| Automatic Grade: | Automatic | Type: | Filling And Sealing Machine |
| Forming Species: | Bag Moulding | Customization: | Available |
| Material Type: | Granules | Dosing Device: | Multi-head Computer Weigher Or Measuring Cup |
| High Light: | Horizontal Premade Pouch Packing Machine,Food Premade Pouch Packing Machine,Doypack zipper pouch packing machine |
||
Application
Doypack machine is suitable for all kinds of premade bags, such as pillow bags, 3-side, 4-side, and 8-side quad seal bags, kraft bags and spout bags, and so on
Features:
1. Easy to operate, adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safty device: Machine stop at the abnormal air pressure, heater disconnection alarm
4. The width of the bags could be adjusted by an electrical motor.
5. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
6. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
7. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
8. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.

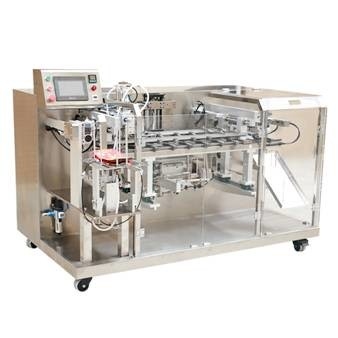

Horizontal Food Granules Doypack Zipper Bag Nozzle Bag Premade Pouch Packaging Machine
Technical Parameters
| Model | 210K |
| Capacity | 10-45bags/min(depends on the material) |
| Packing Weight | 1-1000g |
| Control System | Servo Controller+Colorful Touch Screen |
| Bag Width | 80-200mm |
| Bag Length | 80-280mm |
| Suitable Bag Type | Various premade bag such as standup pouch, 4-sides sealing bag, zipper bag, doypack bag, paper bag, spout bag, flat bottom bag etc. |
| Suitable Bag Material | PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+composite CPP etc. |
| Air Consumption | 0.6m3/min |
| Air Pressure | 0.6-0.8Mpa |
| Power Supply | 380V, 50HZ, 3.2KW |
|
Machine Size |
L3600*W1800*H3750mm |
| Machine Weight | 1200kg |
Details Image
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
