Product Details:
|
| Name: | Automatic Shampoo Liquid Fruit Juice Masala Pouch Packing Machine | Application: | Sauce, Liquid, Paste, Jam Etc. |
|---|---|---|---|
| After-sales Service: | Online Support | Warranty: | 12 Months |
| Automatic Grade: | Automatic | Type: | Filling And Sealing Machine |
| Forming Species: | Bag Moulding | Customization: | Available |
| Material Type: | Powder | Dosing Device: | Liquid Bump |
| High Light: | Automatic Masala Pouch Packing Machine,shampoo Masala Pouch Packing Machine,fruit juice pouch packing machine |
||
Features:
1. Automatic feeding, filling, measuring, bag making, bagging, deviation, filling, charging (exhaust), sealing, date printing and finished product output.
2, the machine uses high-precision servo film conveying system, measuring accuracy ± 0.5 g, PLC program control, developed advanced automatic positioning, photoelectric tracking, digital temperature control and other touchable human-machine interface.
3. The operation is simpler and more perfect. It is the first choice in the food packaging industry, improving production efficiency, speed up to 80 packs per minute, reducing labor intensity and improving the grade of packaging equipment.
4. Packaging materials can be PE / polyethylene, PE / aluminum plating, pet / PE, PP and other heat-sealing packaging materials.
5. High-sensitivity touch screen, automatic memory 8 sets of parameters, can be used in multiple languages,
Bag type

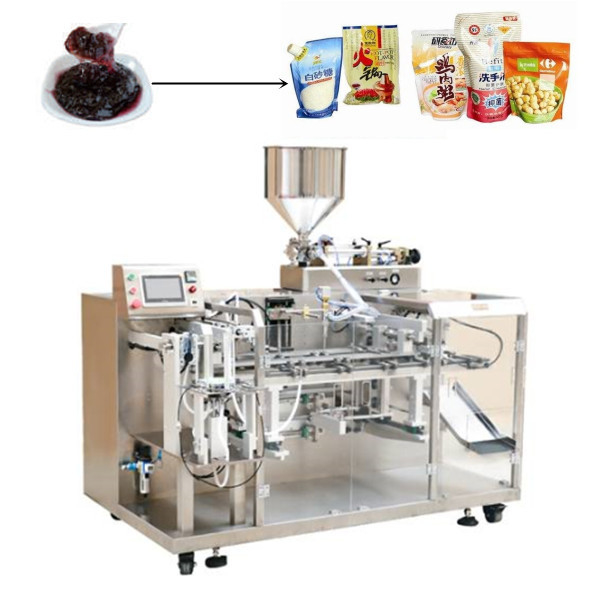

Automatic Shampoo Liquid Fruit Juice Masala Pouch Packing Machine
Technical Parameters
| Model | 210Y |
| Capacity | 10-45bags/min(depends on the material) |
| Tolerance | 0.2-3g |
| Control System | Servo Controller+Touch Screen |
| Bag Width | 80-200mm |
| Bag Length | 80-280mm |
| Suitable Bag Type | Various premade bag such as standup pouch, 4-sides sealing bag, zipper bag, doypack bag, paper bag, spout bag, flat bottom bag etc. |
| Suitable Bag Material | PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+composite CPP etc. |
| Air Consumption | 0.6m3/min |
| Air Pressure | 0.6-0.8Mpa |
| Power Supply | 380V, 50HZ, 3.2KW |
|
Machine Size |
L1500*W1070*H1850mm |
| Machine Weight | 500kg |
Automatic Premade Pouch Gusset Bag Doypack Filling Sealing Machine For Liquid
Details Image
Automatic Shampoo Liquid Fruit Juice Masala Pouch Packing Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
