Product Details:
|
| Name: | Large Size Vertical Bag Forming Fully Automatic Liquid Filling Machine | Application: | Pesticide, Shampoo, Body Lotion, Cream, Sauce, Jam, Ketchup, Honey,Juice And Other Liquid Products |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Function: | Dose, Form, Fill, Seal, Cut |
| Dosing Device: | Liquid Bump By Volume | Packaging Material: | Film |
| Film Material: | OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE | Film Width: | <600mm |
| Sachet Making Size: | L: 150-480mm W: 100-250mm | Packing Speed: | 4-15 Bags/min |
| Power: | 380V/50Hz, 4.5kw | Air Pressure: | 0.6Mpa |
| Air Consumption: | 0.006m^3/min | Machine Weight: | 720kg |
| Machine Size: | L4200*W1100*H1587mm | After-sales Service: | Online Support |
| High Light: | Ketchup Fully Automatic Liquid Filling Machine,5000g Fully Automatic Liquid Filling Machine,5kg vertical bagger machine |
||
Introduction:
The vertical bag-making automatic packaging machine can complete bag making, measurement, filling, nitrogen filling.codingBag cutting. cities applicable to the automatic package of liquid/ paste products in daily chemical industry, food industry, health care industry install. For example enzyme beverage, energy supplement solution, soy sauce, vinegar, hotpot bottom material, peanut butter shampoo, shower gel, seasoning.iam, etc
Features:
1. The automatic liquid packaging machine can automatically complete the products of fasteners conveying, measuring, filling, bag making, date printing, heat sealing, and cutting etc.
2. Sevro motor driving system is adopted in the packaging machine.
3. To ensure the same length of each bag, the high sensitive electro-optical sensor system is provided to realize automatic alignment on the packing film.
4. The packaging machine is equipped with a computer control system.
5. We have installed a constant temperature heating system ensuring a stable temperature and keeping temperature is +/-1°c.
6. The electronic and pneumatic components of the machine are all supplied by reliable supplier cooperating with us for several years, which can ensure the quality of the machine and save the cost of purchase meantime.
7. The bag size and packaging number can be customized by customers.
Technical Parameters
| Model | 600# |
| Forming bag size(mm) | L:150-480 W:100-250 |
| Film material | OPP PE PVC OPP/CPP OPP/PE PET/VMPET/PE |
| Film width(mm) | 220-560 |
| Filling weight | 10-5000g |
| Packaging speed | 4-15bags/min |
| Filling volume | Max.5000cc |
| Sealing type | back sealing |
| Power | AC 380v/50hz 4.5KW |
| Pressure | 0.6Mpa |
| Air consumption | 0.06m3/min |
| Machine Weight | 720kg |
| Machine Size | L4200*W1100*H1587mm |
Machine Details

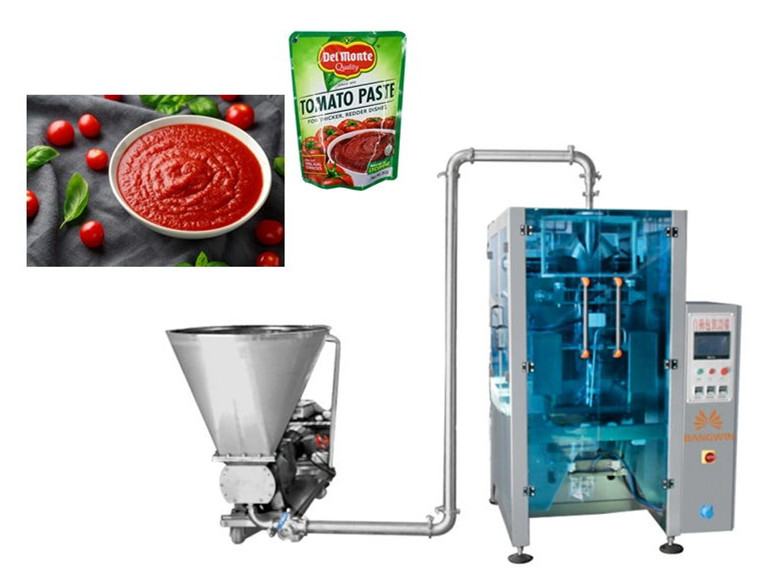

Large Size Vertical Bag Forming Fully Automatic Liquid Filling Machine
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
