Product Details:
|
| Name: | Automatic Medium Size Vertical Liquid Detergent Filling Machine | Application: | Pesticide, Shampoo, Body Lotion, Cream, Sauce, Jam, Ketchup, Honey,Juice And Other Liquid Products |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Function: | Dose, Form, Fill, Seal, Cut |
| Dosing Device: | Liquid Bump By Volume | Packaging Material: | Film |
| Film Width: | <420mm | Sachet Making Size: | L: 60-300mm W: 50-200mm |
| Packing Speed: | 15-80 Bags/min | Power: | 220V/50Hz |
| Air Pressure: | 6kg/m^2 | Air Consumption: | 0.3m^3/min |
| Machine Weight: | 300kg | Machine Size: | L1800*W1050*H2850mm |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| High Light: | PLC Vertical Liquid Filling Machine,pneumatic Vertical Liquid Filling Machine,PLC Liquid Detergent Filling Machine |
||
Introduction:
The vertical bag making automatic packaging machin can complete bag making , measurement, filling, nitrogen filling, coding, bag cutting, etc. It is applicable to the automatic pakage of liquid, sauce and paste such as soy sauce, vinegar, peanut butter, shampoo, shower gel etc
Technical Parameters
| Model | JSL-420# |
| Measuring method | pheumatic piston pump, servo piston pump, peristaltic pump, Haiba pump etc. |
| Bag Size | W: 60-300mm L:50-200mm |
| Filling Weight | 10-5000g |
| Packing Speed | 15-80 bags/min |
| Air Pressure | 6kg/m2 |
| Air Consumption | 0.3m3/min |
| Machine Weight | 300kg |
| Machine Size (L*W*H) | 1800*1050*2850mm |
| Voltage | 220V /50 HZ |
Features
* Computerized touch screen, easy to adjustments and operation, and easy to change products, with exception appearance system,easily and rapidly to repairing;
* Could be automatically to finish making bags, sealing, printing, and optional functions
* Design with alarming for clipping material, door unclosed, rolled film on wrong position, no print tape, no rolled film etc;
* The advanced design ensures that it is very convenient for adjustment, operation and maintenance when different profession use;
* It can support the use of a variety of automatic metering equipment at home and abroad
Working Flow
Except for the normal bag shape, some special shapes can also be achieved.

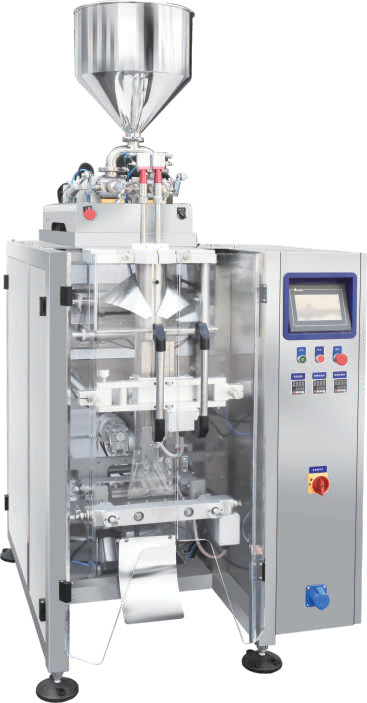

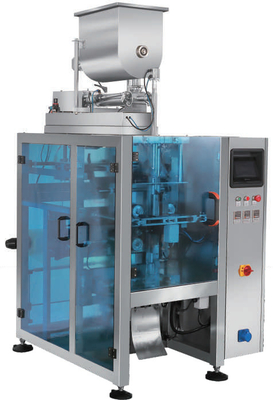

Automatic Medium Size Vertical Liquid Detergent Filling Machine
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
