Product Details:
|
| Name: | Carton Tray Ridgid Erector Erecting Folding Box Machine For Aircraft Shape | Application: | Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning |
|---|---|---|---|
| Automatic Grade: | Automatic | Forming Species: | Box Molding |
| Forming Function: | Forming | Driven Type: | Electric |
| Warranty: | 12 Months | After-sale Service: | Online Support |
| Customization: | Available | ||
| High Light: | 4.5KW folding box machine,Ridgid Erecting folding box machine,Erector cardboard folding machine |
||
This machine is one of our mass production products, a folding box machine series. Set automatic suction board, press down, folding, folding, feeding, molding. According to the actual needs of customers, corrugated paper, kraft paper and other cardboard. Automatic folding into aircraft boxes, special-shaped boxes and other shapes, through the suction cup to suck up the material, by the moving arm into the carton, and then shape output.
High degree of automation: using PLC programmable control system, man-machine interface display box loading speed, quantity, automatic alarm for lack of carton, no product does not open the box, failure causes and other parameters.
Transmission and friction parts strictly according to the standard implementation, late wear less, reduce parts replacement. The equipment can be used alone, but also in front and back with other equipment, such as sorting machine, manipulator, THREE-DIMENSIONAL packaging machine, pillow packaging machine, vertical bag charter machine, assembly machine, automatic filling machine, labeling machine, jet printer, and other kinds of mechanical equipment connected to achieve linkage use.

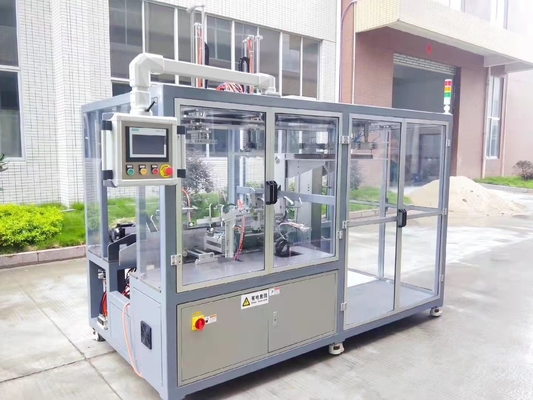

Carton Tray Ridgid Erector Erecting Folding Box Machine For Aircraft Shape
Technical parameters
| Model | 15-30FJH |
| Speed | 15-20pieces/min |
| Ajustable Range | Cutomized |
| Suitable Paper | Cutomized |
| Power | 220V, 50HZ, 4.5KW |
| Air Consuption | 0.5-0.8Mpa 25-40L/min |
| Machine Size | L:2600*W:1600*H1750mm |
Working flow :This machine is one of our main product. It can automatically take box, push box downward, fold ears, fold page, insert card, form. It is suitable for many sizes of boxes and can adjust freely.
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
