Product Details:
|
| Name: | Boxing Conveying And Cartoning Line Fully Automatic Packing Machines | Application: | Cleaning,Detergent,Cosmetics,Drinks,Skin Care Products,Dairy Products, Hair Care Products Etc. |
|---|---|---|---|
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Customization: | Available | Molding Species: | Box And Carton Molding |
| Function: | Form The Box And Put The Product Into The Box, Glue | Material Type: | Solid |
| Packaging Material: | Paper | Control System: | PLC |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| High Light: | Conveying belt Automatic Carton Packing Machine,7kw Automatic Carton Packing Machine,ISO PLC fully automatic packaging machine |
||
Introduction

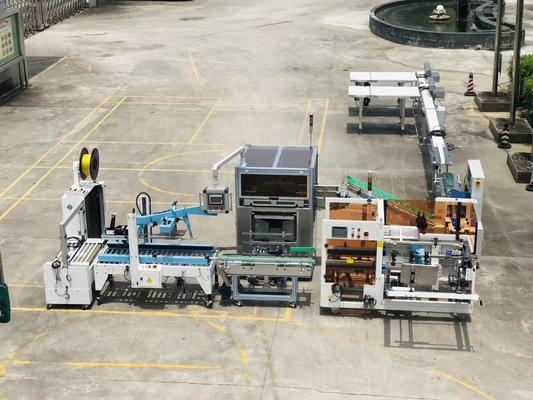

The whole line inludes box forming, product filling, carton forming,box filling, carton taping functions.

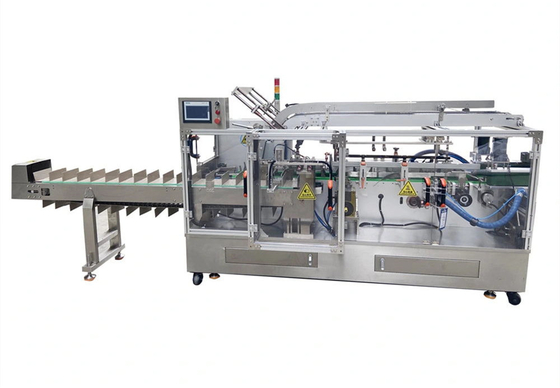

It is consist of box packing machine, boxes counting machine and taping machine.
All the functions are finished automatically, save manpower.
The size could be customized.
Features:
Technical Parameters
| Model | 3-5-SCX |
| Speed | 3-5cartons/min |
| Adjustable Range | can be customized |
| Paper Specification | 250-400g/m^2 |
| Power | 7kw |
| Voltage | 220V,50HZ |
| Air Pressure | 0.5- 0.8Mpa |
| Air Consuption | 30-45L/min |

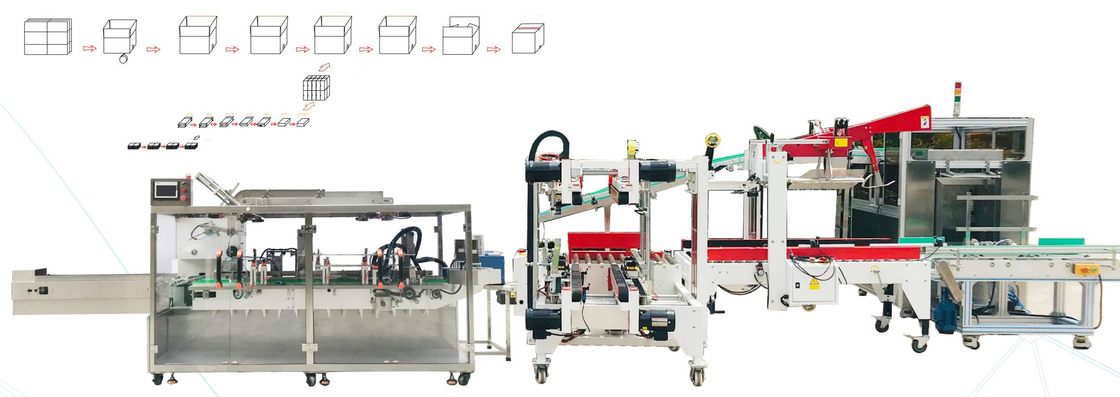

Working flow
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
