Product Details:
|
| Name: | Medium Size Vertical Automatic Powder Packaging Machine With Auger Filler | Application: | Food, Detergent, Health Care And Other Industries |
|---|---|---|---|
| Machine Material: | 304# Stainless Steel | Driven Type: | Electric |
| Controller System: | PLC | Function: | Dose, Form, Fill, Seal, Cut |
| Dosing Device: | Auger Filler | Packaging Material: | Film |
| Film Material: | OPP, PE,PVC, OPP/CPP, OPP/PE, PET/VMPET/PE | Film Width: | <320mm |
| Bag Making Size: | L: 60-200mm W: 50-150mm | Dosing: | Auger Filler |
| Packing Speed: | 25-80 Bags/min | Power: | 1P/220V/50Hz 1.5KW |
| Warranty: | 12 Months | After-sales Service: | Online Support |
| Customized: | Yes | ||
| High Light: | PLC Vertical Powder Packing Machine,auger filler Vertical Powder Packing Machine,304ss Automatic Powder Packaging Machine |
||
Features
1. There is safety protection device.
2. Smart temperature controller.
3. PLC servo system and pneumatic control system makes the machine reliable, intelligent and precise.
4. Large touch screen can store many technical parameters.
5. There is fault display to show and remind you the problem.
Specifications
| Model | 320# | 520# |
| Dosing Device | Auger Filler | Auger Filler |
| Bag Making Size | L:60-200mm W:50-150mm | L:60-320mm W:80-250mm |
| Packing Speed | 25-80bags/min | |
| Power | 3P,380V/220V, 50/60HZ, 3-5KW | |
| Compressed Air Consumption | 6-8kg/㎡ | |
| Air Consumption | 0.3m³/min | |
| Weight | 400kg | 450kg |
| Machine Size | L1665*W1161*H2291mm | L1688*W1200*H2586mm |

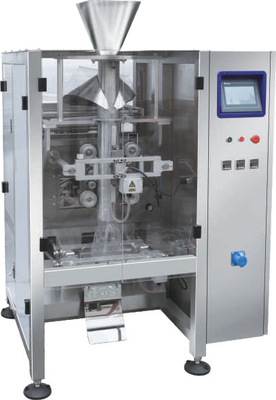

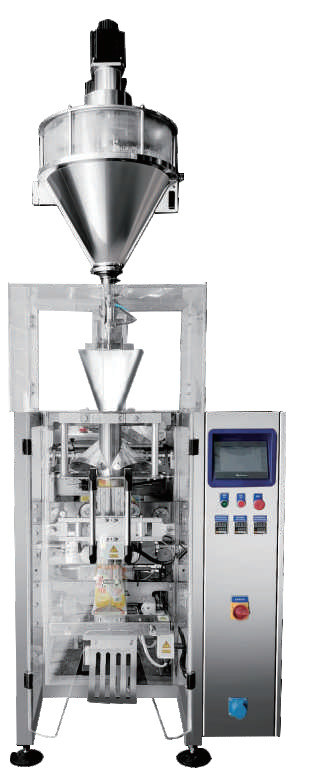

Medium Size Vertical Automatic Powder Packaging Machine With Auger Filler
Packing Samples
Assistant Powder Uploading Device
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS packing machine, horizontal flow packing machine, film shrink wrapper and box carton packing machine, which apply to pack liquid, powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could provide the image or video), the unit packing weight, the bag shape and size( width + length) and other requirements. We will match the suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand, material, specifications etc.) while doing the quotation. Before delivery, we will send you the pictures and video for you to check, or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
