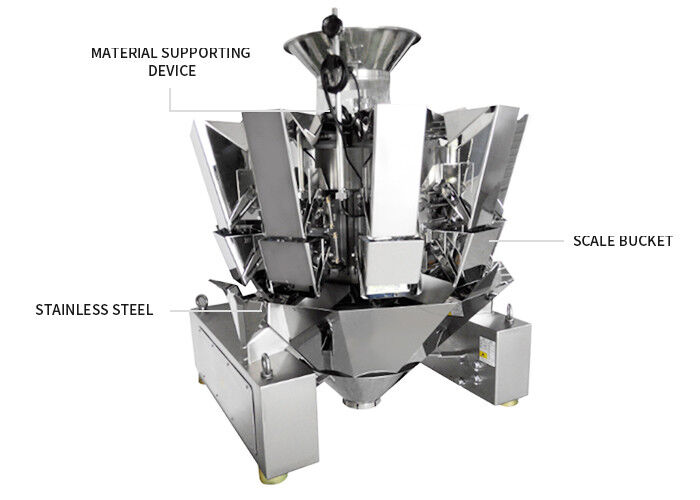

Automatic Multihead Weigher Machine , Candy Multi Head Weigher Packing Machine

Automatic 8 Head Candy Multi Head Weigher Packing Machine

Application

Multihead Weigher is suitable for weighing of granule, slice, roll or irregular shape materials such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food, frozen foods, etc. It is also suitable for weighing small hardware and plastic component.

Features

1. With stable 10-bucket structure, to choose the best combination instantaneously
from abundant weight combinations by computer
2. With instantaneous reaching of correct calculating by high-precision load cell
3. With quiet running, stable action and long life by adopting step-motor
4. The open and close speed of the material dipper cover can be finely regulated
according to the features of the measured material to prevent crashing and damage
5. All the parts touching the material are made by stainless steel, neatness and
hygiene
6. With excellent compatibility and easy using with other packing equipments
7. Measuring error: Within ±1g
8. Max. weight range: 1000g per time
9. Max speed: 50-60b/min
10. Min. scale: 0.1g
11. Weighing error: within 1g
12. Suitable for material length: max. 80mm
13. Measuring method: load cell
14. Way of drive: driven by step motor
15. Form of bucket: double-row non-memory buckets
16. Preset function: max. 50 choices, easy to keep your products and weight data
for future use
17. Material: The part contacting material is made by 304 stainless steel
18. Level control: photo electricity (pass type)
19. Power: AC200/220V±10%, 1.5kVA
20. Optional part: collection bucket, ripple bucket, vibration part water proof

Multi Head Weigher Specification
