| Brand Name: | Shiyuan |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 15 - 25 / day |
| Payment Terms: | D/A,D/P,T/T,Western Union,MoneyGram |

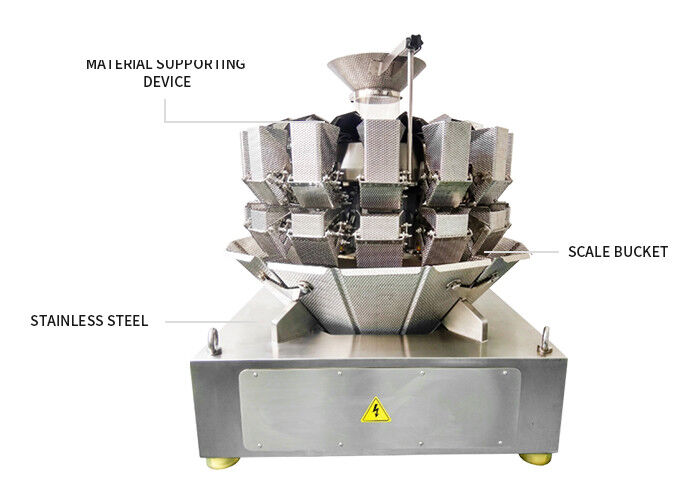

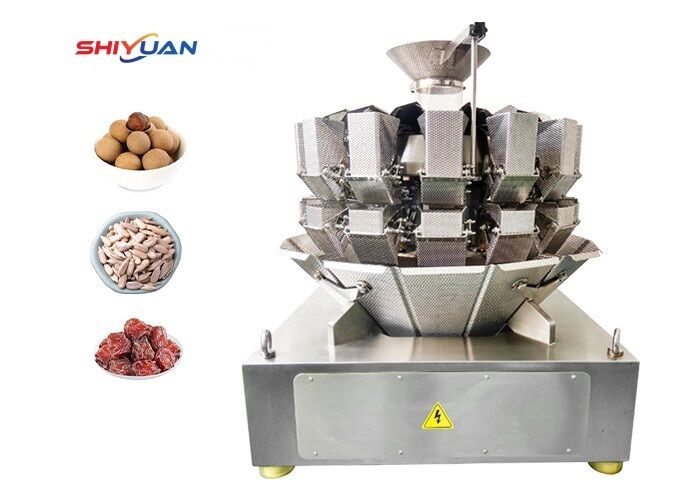

Automatic puffed food Multi head packing machine scale 10 / 14 multihead weigher
Feature
1. IP65 waterproof, use water cleaning directly, save time while cleaning;
2. Modular control system, more stability and lower maintenance fees;
3. Production records can be checked at any time or download to PC;
4. Load cell or photo sensor checking to satisfy different requirements;
5. Preset stagger dump function to stop blockage;
6. Design linear feeder pan deeply to stop small granule products leaking out;
7. Refer to product features, select automatic or manual adjust feeding amplitude;
8. Food contact parts disassembling without tools, which is easier to clean;
9. Multi-languages touch screen for various clients, English, French, Spanish, etc;
10. PC monitor production status, clear on production progress (Option).
Application range
Potato slice and chip, salads, raisin, oatmeal, candy, peanut, walnut kernel, apricot kernel, popped food, sugar, jelly, frozen dumpling, meatball, crude drugs, gourmet powder, salt, solid beverage etc.
New functions
1. Calculating function: can be used in stead of weighing function if your products are the same size and weight.
2. More languages to choose: JAP, GER, SPA, DAN, DUT, FIN, FRE, POL, IT, TUR, SWE
3. Bigger weighing range: Up to 1000grm per dump.
4. Rejecting function: all over weight or down weight products will be rejected by the weigher automatically, so that will be easy to reweigh and save the packing film.
5. Weighing weight record.
Multi Head Weigher Specification
| Packing speed | 16 - 60 bags / min |
| Packing bag size | W : 80-200mm L : 100-360 mm |
| Air consumption | ≤ 0.6m³ / min |
| Voltage | 380V |
| Total power | 6 kw |
| Quantitative range | 10 - 2000g |
| Weighing hopper volume | 3L |
| Speed | 20 - 80 bag / min |
| Accuracy | ± 0.2 - 2g |
| Power supply | AC220V / 50Hz , single phase |
