| Brand Name: | Shiyuan |
| Model Number: | SL-160Y |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 15 - 25 / day |
| Payment Terms: | D/A,D/P,T/T,Western Union |

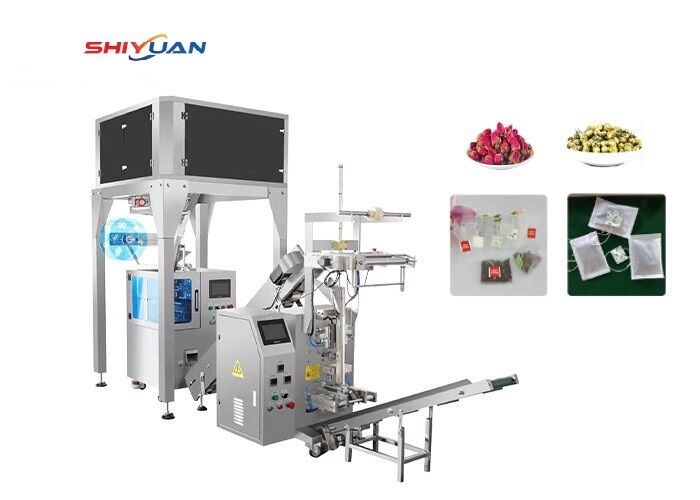

Tea Bag Packaging Machine
Accurate Filling Control
The filling system helps maintain consistent tea quantities and supports different filling weight requirements.
Ultrasonic Sealing Technology
Ultrasonic sealing can provide clean and reliable sealing without traditional heat-sealing contact with the filter material.
Adjustable Packaging Parameters
Filling weight, bag length and other operating parameters can be adjusted according to product and packaging requirements.
Tea Bag Packing Machine Specification
| Packing capacity | 1 - 5g / bag, error ≦ ± 0.2g / bag |
| Width of coil | 140 , 160 , 180 ( mm ) |
| Adjustable range length | 50 , 60 , 70 , 80 ( mm ) |
| Sealing and cutting form | Electric pulse sealing and cutting method-ultrasonic fusion cutting and heat sealing |
| Packing speed | 15 - 45 bags / minute |
| Power supply | 380V , 50HZ , 1.2KW |
| Gas source | Pressure ≧ 0.6Mpa ( can be equipped with air pump for air supply ) |
| Total Weight | 700KG |
| Machine Size | Length 3300 * Width 1600 * Height 2300mm |
