| Brand Name: | Shiyuan |
| Model Number: | SY-380WF |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 100 Set/Month |
| Payment Terms: | D/A,D/P,T/T,Western Union |

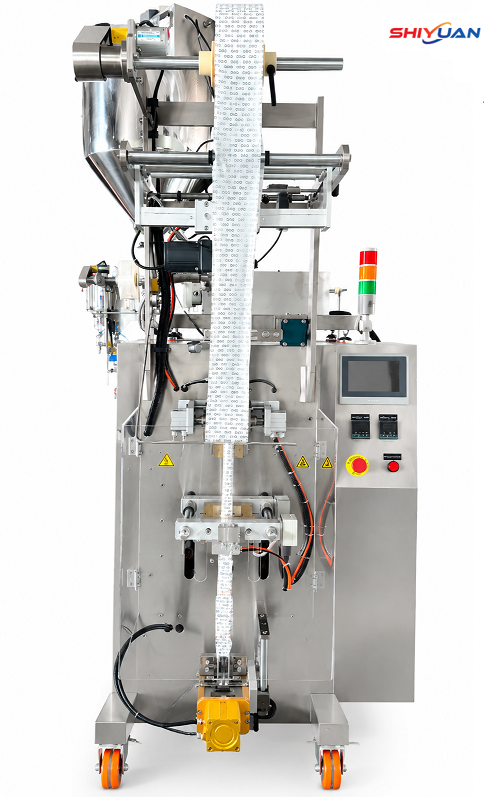

Automatic Liquid Pouch Packaging Machine
Automatic Filling and Sealing
Integrates liquid filling, film forming, bag sealing, and cutting into one automated process.
Accurate Liquid Dosing
Equipped with a suitable liquid metering system to deliver consistent filling volumes according to product requirements.
Adjustable Packaging Parameters
Allows operators to adjust filling volume, sealing temperature, and packaging speed according to the product and packaging material.
Reliable Sealing Performance
The heat-sealing system helps create secure package seals when the temperature, pressure, and sealing time are properly set.
Liquid Packaging Machine Specification
|
Packaging material
|
Aluminum foil composite film
|
|
Bag width
|
20 - 60mm
|
|
Bag length
|
80 - 180mm
|
|
Packing speed
|
10 - 60 bags / min
|
|
Power supply
|
220V
|
|
Whole machine power
|
2.5KW
|
|
Overall volume
|
913 * 1122 * 1961mm
|
|
Packing size
|
850 * 1230 * 2130
|
|
Packing weight
|
300KG
|
|
Lifting stroke
|
200mm
|
