| Brand Name: | Shiyuan |
| Model Number: | SY-350XDAN |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 15 - 25 / day |
| Payment Terms: | D/A,D/P,T/T,Western Union |

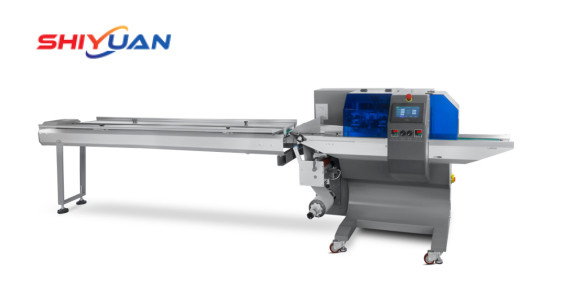

Automatic down film three servo pillow packaging machine
Main Performance and Structural Features
1. Three servo motors, controlled by PLC. The bag length is cut immediately upon setting, no need for adjustment of idle travel. It is completed in one step, saving time and film.
2. Human-machine interface. Parameter setting is convenient and fast. It can automatically package when there is a product and automatically pause and wait when there is no product.
3. Self-diagnosis function for faults, fault display is clear at a glance.
4. High-sensitivity photoelectric eye color marking tracking, digital input for sealing and cutting position, making the sealing and cutting position more accurate.
5. Temperature independent PID control, better suitable for various packaging materials.
6. Positioning stop function, no knife sticking, no waste of film.
7. Simple transmission system, more reliable operation, easier maintenance and servicing.
8. All control is realized by software, facilitating function adjustment and technical upgrade, never lagging behind.
Machine Specification
|
Model |
SY-350XDAN |
|
Film Width |
Max.340mm |
|
Bag length |
Any long size by sensor control |
|
Bag width |
50～160mm |
|
Product Height |
Max.45～65mm |
|
Film roll diameter |
Max.320mm |
|
Packing speed |
10～25 Meter / min |
|
Power Specifications |
220V,50/60HZ,2.8KW |
|
Machine size |
(L)3592×(W)810×(H)1100mm |
|
Approximately Weight |
450Kg |
