| Brand Name: | Shiyuan |
| Model Number: | SLIV-380 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 100 Set/Month |
| Payment Terms: | 15-25/day |
Application
1.Can finish the function of bag making, measuring,filling,sealing,cutting and counting.
2.Controlled by computer and step motor pull bag, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.
3.Separate PID control to temperature, suitable for various packing materials.
4. Option device: ribbon printer, filling device, gas-exhaust device, horizontal sealing punching device, rotary cutter, small cutter, former beat device, batch pneumatic cutter.
5.Simple driven system, working more stable and easy to maintain.
6. Packing material:(PET/PE), (Paper/PE), (PET/AL/PE), (OPP/PE)
Feature
LCD screen, intelligent control, failure warning, Solid intelligence double road temperature control, The design of circulatory wind-electric cabinet for 24 hours working, 304 stainless steel.

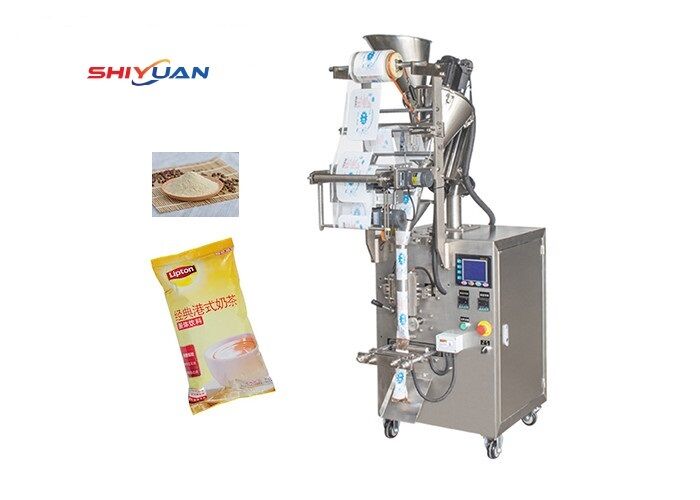

Powder Packaging Machine Specification
| Measurement method | Screw metering |
| Measuring range | Powder (1 - 350ml) |
| Packing speed | 20 - 60 bags / minute |
| Maximum width of roll film | 320mm |
| Bag size | ( W ) : 14-150mm ( L ) 50 - 200mm |
| Sealing category | Back seal |
| Total power | 2.6kw |
| Power supply | 220V or 380V50-60HZ |
| Machine weight | 250kg |
| Machine size | L860 x W700 x H1700mm |
