| Brand Name: | Shiyuan |
| Model Number: | SLIV-520/420 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 100 Set/Month |
| Payment Terms: | 15-25/day |

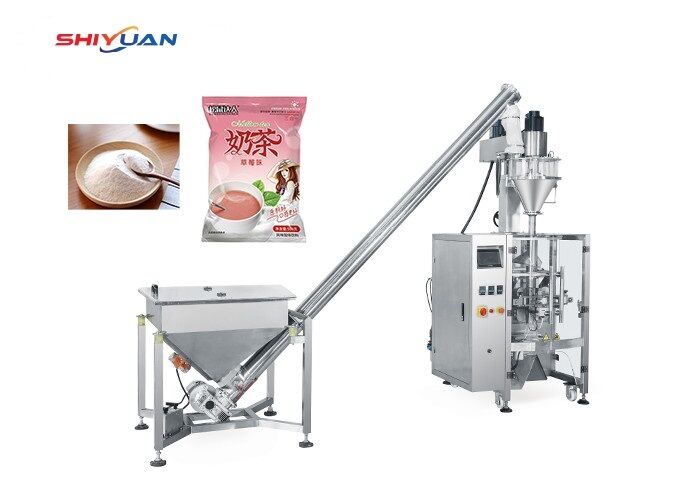

Wholesale High-end Powder Filling Packing Machine With PLC Touch Screen
Application
This machine adopts the advanced PLC operation system, and the Chinese/English screen, easy to manipulate and maintain.This machine can pack the powder of food stuff and chemicals, such as flour,soybean powder,milk powder and medicine powder.
Main Features
1 . The amplitude of vibrator can be auto-modified for more efficient weighing.
2 . High precise digital weighing sensor and AD module have been developed.
3 . Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.
4 . Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default setting.
5 . Multi-language operation system can be selected basing on customer's requests.
6 . Easy to install film, auto correcting the excursion of the film.
7 . Use superior mechanical components, reduce the wear out loss.
Machine composition
1 . Hot stamp ribbon coder
2 . Batch cutter
3 . Vacuum loader
4 . On-line check weighting with auto feedback weight
Powder Packaging Machine Specification
|
Packing Machine
|
|||
|
Model
|
SLIV - 520
|
SL - 420
|
SL - 320
|
|
Packing material
|
OPP / CPP OPP/PE NILO / PE PE
|
||
|
Measurement accuracy
|
Defect rate ≤ 0.5 - 1% depends on packaging speed and material weight
|
||
|
Measuring range
|
4000ML
|
2500ML
|
800ML
|
|
Bag size
|
W : 150 - 250mm L : 400 mm
|
W : 150 - 250 mm L : 400 mm
|
W : 50-150mm L: 50 ~ 200mm
|
|
Packing speed
|
5 - 50( bags / min )
|
5-60 bags / min
|
10-50 bags / min
|
|
Max film width
|
520mm
|
420mm
|
320mm
|
|
Voltage
|
220V AC / 50HZ
|
220V AC / 50HZ
|
220V AC / 50HZ
|
|
220V AC/50HZ
|
4kW
|
3kW
|
3kW
|
|
Weight
|
450kW
|
400kW
|
300kW
|
