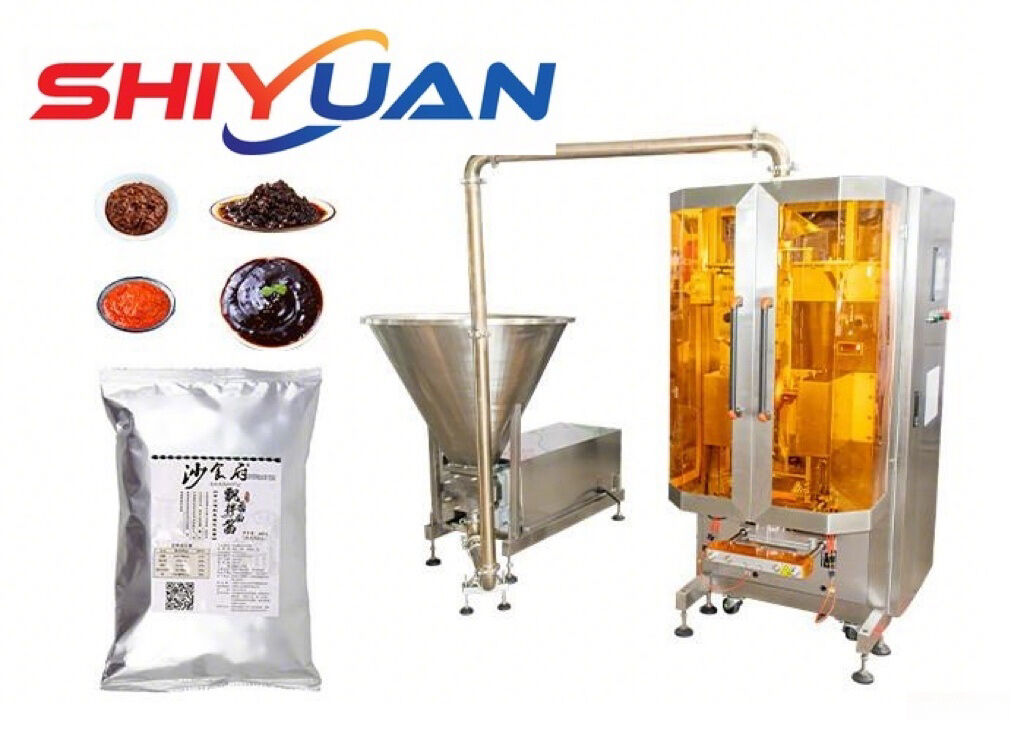

Sauce Viscous Liquid Packaging Machine Shisha Filling Sealing machine
The main performance and characteristics of the product
1. Suitable for automatic measurement and packaging of liquid and viscous materials. For example: fillings, sauces, slurries, colloids, fats, etc.
2. Adopt high-reliability electrical appliances and pneumatic components to ensure long-term reliable use of the whole machine.
3. The horizontal seal and the cutter are at the same working position, which improves the packaging efficiency.
4. The squeeze exhaust method is adopted, and airless packaging can be realized without a vacuum pump, which is especially suitable for the packaging of viscous materials.
5. The touch screen operation interface is easy to use, simple and user-friendly.
6. Self-inspection design, proactively prompt when maintenance or maintenance is needed.
7. The materials can be packaged at high temperature to avoid secondary pollution, improve work efficiency, and reduce production costs.
8. It can be combined with various filling systems such as rotor pumps, plunger pumps, sine pumps, gear pumps, screw pumps, etc., to suit various production
Document control level: external product packaging.
Liquid Packaging Machine Specification
|
Packing speed
|
5 - 15 Ppm
|
|
Package weight
|
1000 - 6000g
|
|
Bag width range
|
150 - 250mm
|
|
Bag length range
|
200 - 600mm
|
|
Voltage
|
3 x 380V + N / 50Hz
|
|
Power
|
1.5Kw + 1.5kw
|
|
Air source
|
0.6Mpa 0.3M3 / min
|
|
Packing material
|
PA + PE
|
|
Whole machine weight
|
650kg
|
|
Dimensions
|
1500 * 800 * 1550
|
