Automatic Liquid Packing Machine
Created with Pixso. 3kw 2500ml OPP Liquid Honey Pouch Packing Machine 60 Bags / Min

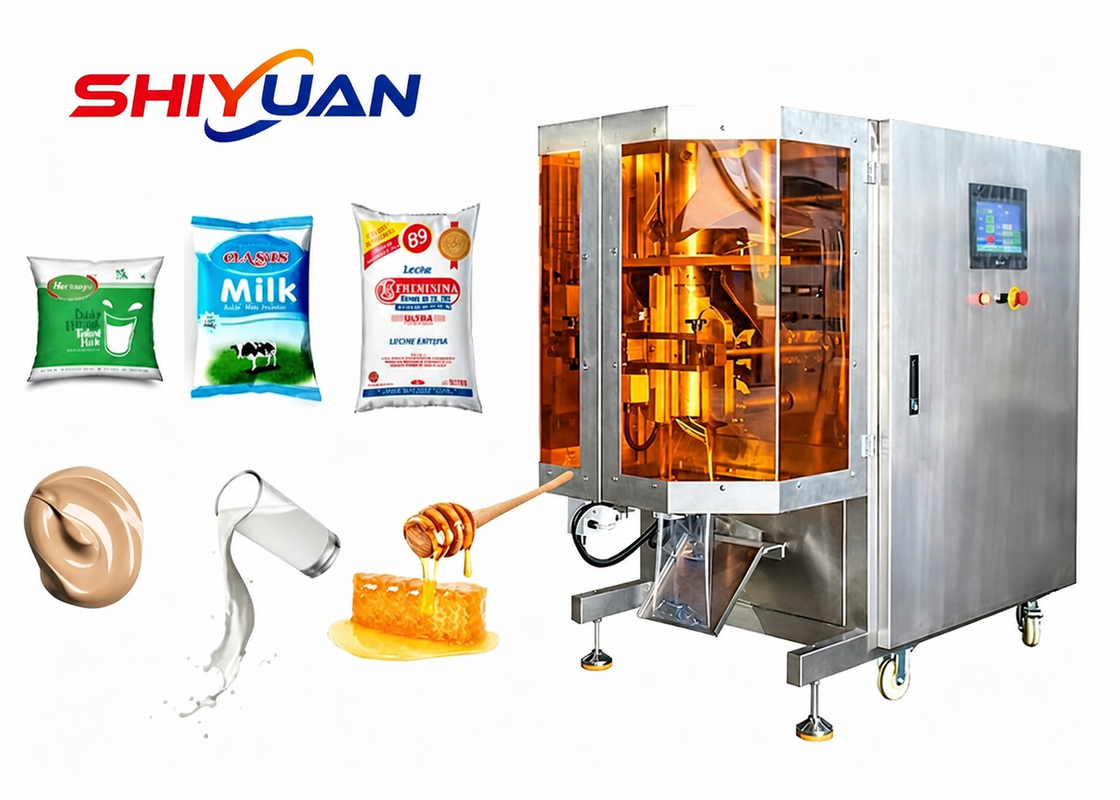

3kw 2500ml OPP Liquid Honey Pouch Packing Machine 60 Bags / Min

Brand Name: Shiyuan
Model Number: SLIV - 420 New
MOQ: Negotiable
Price: Negotiable
Delivery Time: 100 Set/Month
Payment Terms: D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE
Packaging Materials:
OPP / PE
Measurement Method:
Can Be Equipped With Electronic Scale Ect
Scope Of Application:
Pastes And Other Materials
Measuring Range:
2500ml
Packing Speed:
20 - 60 Bag / Min
Total Power:
3kw
Machine Weight:
350kg
Machine Size:
1370 * 1130 * 1410mm
Bag Size:
W : 100-200mm L : 300mm
Maximum Width Of Roll Film:
420mm
Name:
Automatic Liquid Packing Machine
Packaging Details:
1440*1220*1570mm
Supply Ability:
15-25/day
Highlight:

2500ml honey pouch packing machine

,

3kw honey pouch packing machine

,

OPP liquid packing machine

Product Description



Automatic Liquid Packing Machine Honey Pouch Filling Machine





Scope of application


Designed and manufactured for powder, ultra-fine powder and other materials, it can automatically complete measurement, filling, nitrogen filling and other tasks. Can be used with various bag making the packaging machine is used for measuring and filling powdered materials. Suitable for packaging those powdery and granular materials that are easy to flow or have very poor flowability, such as milk Flour, feed, rice flour, sugar, monosodium glutamate, solid beverages, glucose, food additives, nutritious food, dyes, flavors and fragrances, etc.





Product advantages


1. Chinese and English touch screen display, intuitive and simple operation.
2. The PLC computer control system is more stable and can adjust any parameters without stopping the machine.
3. Ten groups of parameters can be stored, which makes it more accurate to change varieties.
4. Using dual servo motor control, the film pulling is more accurate and faster.
5. Independent temperature control system, the accuracy can reach ±1℃.
6. The horizontal and vertical sealing temperature are controlled independently, which can be well applied to various packaging materials such as composite film and PE film.
7.  The packaging styles are diversified, such as back seal, gusset, continuous bag, punching, etc.





Liquid Packaging Machine Product advantages



Packaging Materials OPP / CPP OPP / PE NILO / PE PE
Measurement method Can be equipped with electronic scale , screw metering machine , injection pump , rotor pump , vibration , disc feeding .
Scope of application Particles, hardware, liquids, powders, pastes and other materials
Measuring range 2500ml (subject to actual materials)
Packing speed 20 - 60 bags / minute
Maximum width of roll film 420mm
Bag size ( W ) :  width 100-200mm ( W )mm length 300mm ,  vertical seal :  10mm , horizontal seal : 15mm
Machine weight 350kg
Total power 3kw
Machine size 1370 ( L ) * 1130 ( W ) * 1410 ( H ) mm
